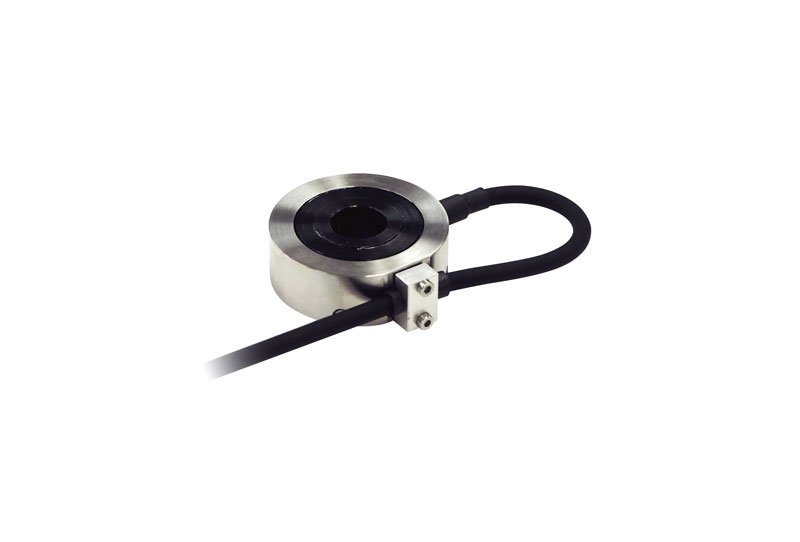

VALCOM / VLC-512 series Miniature Washer type Load Cell

VALCOM / VLC-512 series Miniature Washer type Load Cell

  • Miniature design
  • Robot cable (5 m, standard)
Category:
Tags: , ,
브랜드:

설명

VLC-512 series Miniature Washer type Load Cell

Specifications

Rated output 1mV/V±0.3mV/V
Nonlinearity ±1%R.C.
Hysteresis ±1%R.C.
Repeatability ±1%R.C.
Zero balance ±0.1mV/V
Recommended excitation voltage 5V or less
Maximum excitation voltage 10V
Input terminal resistance 350Ω±5Ω
Output terminal resistance 350Ω±5Ω
Insulation resistance 1000MΩ or more (DC 50V)
Temperature compensation range −5–60°C (No condensation or freezing)
Safe temperature range −10–70°C (No condensation or freezing)
Temperature effect on zero balance ±0.2%R.C./10°C
Temperature effect on load ±0.5%R.C./10°C
Safe overload rating 150%R.C.
Ultimate overload rating 200%R.C. or more
IP rating Equivalent to IP60 (Main body only) (Note 1)
Cable φ5-4-core shielded robot cable 5m
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. D Weight
  VLC-20KN-512 20kN Approx. 0.01mm 20 Approx. 500g
  VLC-50KN-512 50kN 24
  • *Weight includes cable.

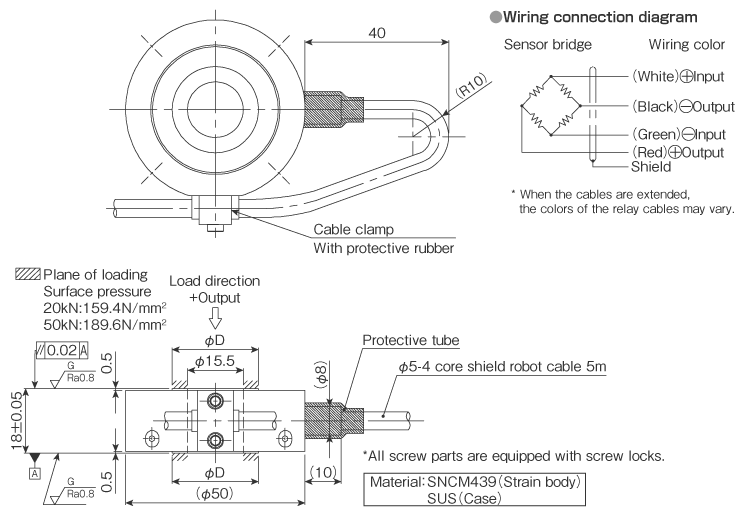

External dimensions (Unit: mm)

External dimensions
