VPW6DC3 series Single Point type Load Cell
Specifications
| Rated output | 2.0±0.2mV/V |
|---|---|
| Nonlinearity | ±0.0166%R.C. |
| Hysteresis | ±0.0166%R.C. |
| Zero balance | ±0.1mV/V |
| Temperature effect on zero balance | 20–40°C:±0.0175%R.C./10°C -10–20°C:±0.0117%R.C./10°C |
| Safe overload rating | 150%R.C. |
| Safe Side Load Level | 300%R.C. |
| Temperature compensation range | −10–40°C (No condensation or freezing) |
| Safe temperature range | −10–50°C (No condensation or freezing) |
| Input terminal resistance | 380±38Ω |
| Output terminal resistance | 380±38Ω |
| Recommended excitation voltage | 5V |
| Excitation voltage range | 12V |
| Insulation resistance | 2000MΩ |
| IP Rating | Equivalent to IP65 (Note 1) |
| Cable | 4-core Shielded cable 0.35m |
- Creep 30min: ±0.0245R.C. Eccentric error: ±0.0233%R.C.
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Temperature effect on zero balance | Maximum Load Area | Deflection at R.C. | Weight |
|---|---|---|---|---|---|---|
| VPW6DC3-3kg | 3kg (29.42N) | ±0.0233%R.C./10°C | 300×300mm | Approx. 0.4mm | Approx. 160g | |
| VPW6DC3-5kg | 5kg (49.03N) | ±0.0280%R.C./10°C | ||||
| VPW6DC3-10kg | 10kg (98.07N) | ±0.0280%R.C./10°C | ||||
| VPW6DC3-15kg | 15kg (147.1N) | ±0.0186%R.C./10°C | ||||
| VPW6DC3-20kg | 20kg (196.1N) | ±0.0350%R.C./10°C | ||||
| VPW6DC3-30kg | 30kg (294.2N) | ±0.0233%R.C./10°C | ||||
| VPW6DC3-40kg | 40kg (392.3N) | ±0.0350%R.C./10°C |
- *Weight includes cable.

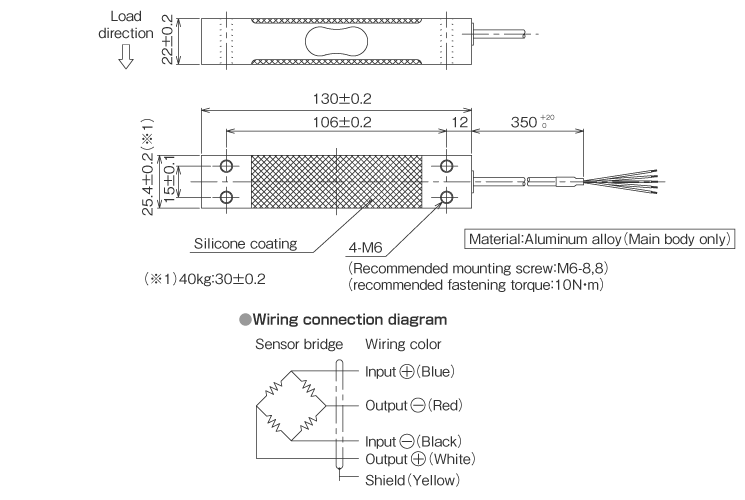

External dimensions (Unit: mm)
