Tedea Huntleigh / Model 1260 Aluminum High Capacity Single-Point Load Cell

Tedea Huntleigh / Model 1260 Aluminum High Capacity Single-Point Load Cell

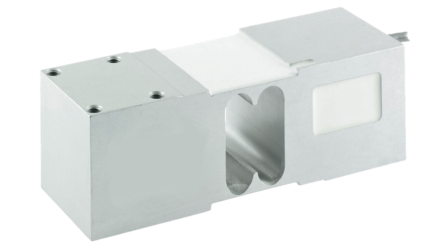

The load cell model 1260 is an aluminum single-point load cell designed for direct mounting of large platform scales, 600×600 mm platform. The load cell is available in the capacities 50 -635 kg. The rugged construction offers high immunity to side forces making it suitable for a wide range of weighing applications including check weighing and bench scales. This high-performance load cell is OIML R60 and NTEP approved. A special humidity resistant coating assures long-term reliability. The load cell has IP66 protection. For hazardous environments this load cell is available in ATEX, IECEx and FM versions.

Category:
Tag:
브랜드: ,

설명

Model 1260 Aluminum High Capacity Single-Point Load Cell

FEATURES
• Capacities 50–1500 kg
• Aluminum construction
• Single-point 800 x 800 mm platform
• OIML R60 and NTEP approved
• IP65 protection
• Available with metric and UNC threads
• Optional
❍ EEx ia IIC T4 hazardous area approval
❍ FM approval available
❍ IP67 option available

APPLICATIONS
• Large platform scales
• Hanging scales
• Check weighing

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 50, 75, 100, 150, 200, 250, 300, 500, 635, 1000 kg
NTEP/OIML accuracy class NTEP(1) Non-Approved C3(2)
Maximum no. of intervals (n) 5000 single 1000 3000
Y = Emax/Vmin 1000 3333 15000 Maximum available
Rated output—R.O. 2.0 mV/V
Rated output tolerance 0.2 ±mV/V
Zero balance 0.2 ±mV/V
Zero return, 30 min. 0.0330 0.0300 0.0170 ±% of applied load
Total error 0.0350 0.0500 0.0200 ±% of rated output
Temperature effect on zero 0.0028 0.0100 0.0023 ±% of rated output/°C
Temperature effect on output 0.0011 0.0030 0.0010 ±% of applied load/°C
Eccentric loading error 0.0020 0.0050 0.0033 ±% of rated load/cm
Temperature range, compensated –10 to +40 °C
Temperature range, safe –20 to +70 °C
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 415±15 Ω
Output impedance 350±3 Ω
Insulation resistance >2000 MΩ
Cable length 3 m
Cable type 6-wire, braided, polyurethane, dual loating screen Standard
Construction Plated (anodized) aluminum
Environmental protection IP66
Platform size (max.) 600 × 600 mm
Recommended torque 16.0 N*m

(1) Capacity 635 kg is not NTEP approved.

(2) 50% utilization

All speciications are subject to change without notice.
