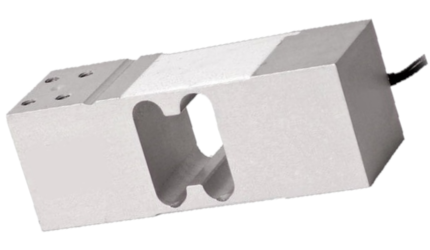

Tedea Huntleigh / Model 1263 Aluminum High Capacity Single-Point Load Cell

Tedea Huntleigh / Model 1263 Aluminum High Capacity Single-Point Load Cell

The load cell model 1263 is an aluminum single-point load cell designed for direct mounting of large platform scales, 600 x 600 mm platform. This high-performance load cell is OIML R60 approved. The rugged construction offers high immunity to side forces making it suitable for a wide range of weighing applications including check weighing, bench scales and process weighing. The load cell has IP66 protection. For hazardous environments the 1263 load cell is available in ATEX and IECEx approved versions. A special humidity resistant coating assures long-term reliability.

Category:
Tag:
브랜드: ,

설명

Model 1263 Aluminum High Capacity Single-Point Load Cell

FEATURES
• Capacities 50–635 kg
• Aluminum construction
• Single-point 600 × 600 mm platform
• OIML R60 approved
• IP66 protection
• Available with metric threads
• Optional
❍ ATEX and IECEx approvals available

APPLICATIONS
• Large platform scales
• Hanging scales
• Check weighing

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 50, 100, 150, 200, 250, 300, 500, 635 kg
NTEP/OIML accuracy class Non-Approved C3*
Maximum no. of intervals (n) 1000 3000
Y = Emax/Vmin 2000 15000 Maximum available
Rated output—R.O. 2.0 mV/V
Rated output tolerance 0.2 ±mV/V
Zero balance 0.2 ±mV/V
Zero return, 30 min. 0.050 0.0170 ±% of applied load
Total error 0.0300 0.0200 ±% of rated output
Temperature effect on zero 0.0100 0.0023 ±% of rated output/°C
Temperature effect on output 0.0030 0.0010 ±% of applied load/°C
Eccentric loading error 0.0050 0.0033 ±% of rated load/cm
Temperature range, compensated –10 to +40 °C
Temperature range, safe –20 to +70 °C
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 415±15 Ω
Output impedance 350±3 Ω
Insulation resistance >2000 MΩ
Cable length 1.5 m

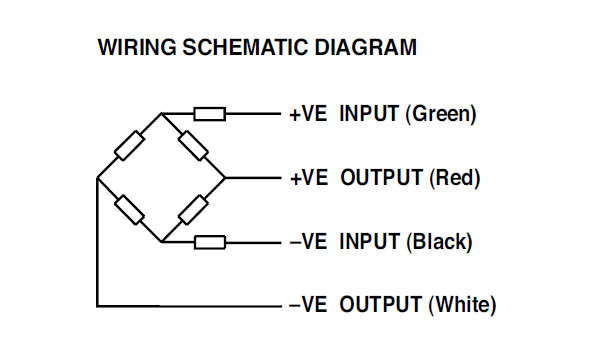

Cable type 4-wire, PVC, single loating screen Standard
Construction aluminum
Environmental protection IP66
Platform size (max.) 600 × 600 mm mm
Recommended torque Up to 300 kg: 25.0 Above 300 kg: 30.0 N*m

* 50% utilization
All speciications subject to change without notice.
