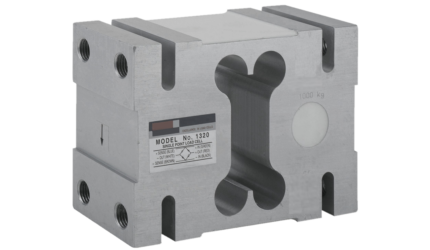

VPG / Model 1320 High Capacity Single-Point Load Cell

VPG / Model 1320 High Capacity Single-Point Load Cell

The load cell model 1320 is a high capacity single-point load cell designed for direct mounting of low profile, high capacity weighing platforms up to 1200 x 1200 mm. Its large platform size simplifies the construction of floor scales, weigh bars, hanging scales and other types of weighing machines with a capacity up to 2000 kg. All load cells are individually adjusted to eliminate corner errors, tested and calibrated to meet OIML specification. For hazardous environments the 1320 load cell is available in ATEX and IECEx approved versions. A special humidity resistant coating assures long-term reliability.

Category:
Tag:
브랜드: ,

설명

Model 1320 High Capacity Single-Point Load Cell

FEATURES
• Capacities 1000–2000 kg
• Aluminum construction
• Single-point 1200 × 1200 mm platform
• OIML R60 and NTEP approved
• IP66 protection
• Available with metric threads
• Optional
❍ ATEX, FM and IECEx approvals available

APPLICATIONS
• Very large platform scales
• Hanging scales
• Check weighing

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 1000, 1500, 2000 kg
NTEP/OIML accuracy class NTEP Non-Approved C3
Maximum no. of intervals (n) 3000 single 1000 3000*
Y = Emax/Vmin 1000 3333 10000 Maximum available
Rated output—R.O. 2.0 mV/V
Rated output tolerance 0.2 ±mV/V
Zero balance 0.2 ±mV/V
Zero return, 30 min. 0.0330 0.0300 0.0170 ±% of applied load
Total error 0.0200 0.0500 0.0200 ±% of rated output
Temperature effect on zero 0.0040 0.0100 0.0023 ±% of rated output/°C
Temperature effect on output 0.0010 0.0030 0.0010 ±% of applied load/°C
Eccentric loading error 0.0033 0.0025 0.0017 ±% of rated load/cm
Temperature range, compensated –10 to +40 °C
Temperature range, safe –30 to +70 °C
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 415±15 Ω
Output impedance 350±3 Ω
Insulation resistance >2000 MΩ
Cable length 5 m
Cable type 6 wire, braided, polyurethane, dual loating screen Standard
Construction Plated (anodized) aluminum
Environmental protection IP66
Recommended torque 165.0 N*m

* 50% utilization
All speciications subject to change without notice.
