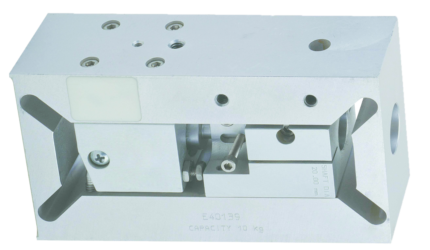

VPG / Model 1410 Load Cell for Rotary Filling Machines

VPG / Model 1410 Load Cell for Rotary Filling Machines

The load cell model 1410 is a fluid damped load cell designed to be used in rotary filling machines. The load cell alleviates many of the problems encountered when conventional load cells are used in rotary weighing machines. Due to a patented damping system, typically setting times of 700 ms are reduced to less than 300 ms (depending upon conditions) significantly reducing cycle times and increasing throughput capabilities. Centrifugal forces are handled in such a way that their effect on output is very small. The 1410 provides excellent isolation of base vibrations.

Category:
Tag:
브랜드: ,

설명

Model 1410 Load Cell for Rotary Filling Machines

FEATURES
• The irst and only load cell speciically designed for use
in rotary illing machines
• Short settling times
• High resistance to side loads
• Effective isolation of base vibrations
• Centrifugal forces do not affect accuracy
• Two mounting options
• Optional:
❍ FM approval available

APPLICATIONS
• Rotary illing machines

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 10, 20, 30 kg
Accuracy class E G
Rated output—R.O. 2 mV/V
Rated output tolerance 0.3 ±% mV/V
Zero balance –0.0 / +0.2 ±% mV/V
Total static error at room temperature per OIML 0.05 0.02 ±% of R.O.
Dynamic error: speed range of 0 to 15 rpm, rotational radius of 1m, load placed on platform located 14 cm above top surface of load cell and connected by 3/4” or 20 mm dia. steel shaft 0.04 ±% of the static reading at same load
Creep and zero return (30 min.) 0.05 0.025 ±% of load
Temperature effect on zero 0.010 0.004 ±% of R.O./°C
Temperature effect on output 0.003 0.001 ±% of load/°C
Temperature range, compensated +5 to +40 °C
Temperature range, safe –30 to +70 °C
Maximum safe static overload, positive 160 Factory adjusted to 120 … 160% of R.C. % of R.C.
Maximum safe static overload, negative –120 Factory adjusted to -30 … –120% of R.C. % of R.C.
Ultimate static overload (central loading) 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 415±15 Ω
Output impedance 350±3 Ω
Insulation resistance >2000 MΩ
Cable length 0.6 m
Construction Anodized aluminum
Damping Internal silicone luid damping. Piston has two positions: working and shipping. In shipping position the cylinder is sealed.

All speciications subject to change without notice.
