VPG / Model 3410 Shear Beam Load Cell

VPG / Model 3410 Shear Beam Load Cell

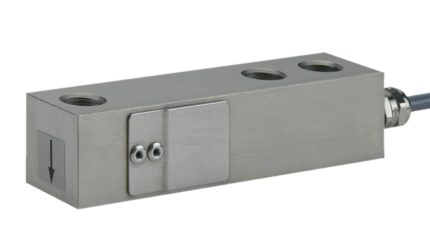

The load cells model 3410 is a low profile shear beam load cell well suited for low profile platforms and process weighing applications. The 3410 load cell has high immunity to shock or side loading. The load cell is OIML R60 and NTEP approved and has IP67 protection. Nickel plating and full environmental sealing assures long-term reliability. The load cell is available in 250 – 2000 kg and 1000 – 4000 lbs. For hazardous environments the load cell is available in an EEx ia IIC T6 and FM approved version.

Category:
Tag:
브랜드: ,

설명

Model 3410 Shear Beam Load Cell

FEATURES
• Capacity range: 100–500 kg
• Stainless steel construction
• Single-point 600 x 600 mm platform
• OIML R60 and NTEP approved
• IP68 protection
• Optional
❍ EEx ia IIC T6 hazardous area approval
❍ FM approval available
❍ Platform size 600 x 800 mm available

APPLICATIONS
• Food industry platforms
• Marine and hybrid scales
• Process weighing hoppers
• Harsh environment

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 250, 500, 1000, 2000 kg
Rated capacity—R.C. (Emax) 1000, 1500, 2500, 4000 lbs
NTEP/OIML accuracy class NTEP Non-Approved C3
Maximum no. of intervals (n) 3000 single 5000 multiple 1000 3000(1)
Y = Emax/Vmin 6666 1400 10000 Maximum available
Rated output-R.O. 2.0 for kg and 3.0 for lbs mV/V
Rated output tolerance 0.1 ±% of rated output
Zero balance 2 ±% of rated output
Zero return, 30 min. 0.0250 0.0300 0.0170 ±% of applied load
Total error (per OIML R60) 0.0200 0.0500 0.0200 ±% of rated output
Temperature effect on zero 0.0023 0.0100 0.0023 ±% of rated output/°C
Temperature effect on output 0.0010 0.0030 0.0010 ±% of applied load/°C
Temperature range –10 to +40 °C
Temperature range, safe –20 to +70 °C
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 385±10 Ω
Output impedance 351±5 Ω
Insulation resistance >2000 MΩ
Cable length 3.0—3410 6.0—3411 m
Cable type 6-wire, braided, polyurethane, loating screen Standard
Construction Nickel-plated alloy steel and stainless steel
Environmental protection IP67
Recommended torque 136 N*m

* 50% utilization
All speciications subject to change without notice.
