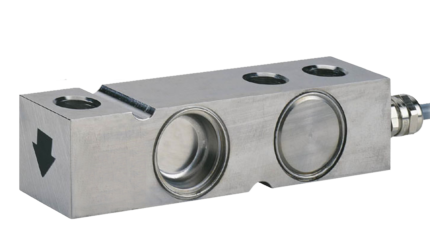

VPG / Model 3510 Stainless Steel Shear Beam Load Cell

VPG / Model 3510 Stainless Steel Shear Beam Load Cell

The load cells model 3410 is a low profile shear beam load cell well suited for low profile platforms and process weighing applications. The 3410 load cell has high immunity to shock or side loading. The load cell is OIML R60 and NTEP approved and has IP67 protection. Nickel plating and full environmental sealing assures long-term reliability. The load cell is available in 250 – 2000 kg and 1000 – 4000 lbs. For hazardous environments the load cell is available in an EEx ia IIC T6 and FM approved version.

Category:
Tag:
브랜드: ,

설명

Model 3510 Stainless Steel Shear Beam Load Cell

FEATURES
• Capacities 300–5000 kg, 1000–5000 lbs
• Stainless steel construction
• OIML R60 and NTEP approved
• Hermetically sealed to IP68 and IP69K
• Specially designed for harsh environment
• Optional
❍ EEx ia IIC T6 hazardous area approval
❍ FM approval available
❍ 1100Ω impedance available

APPLICATIONS
• Low proile platforms
• Pallet truck weighing
• Tank and silo weighing
• Harsh environment weighing
• Food industry weighing

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 300, 500, 750, 1000, 1200, 2000, 3000, 5000 kg
Rated capacity—R.C. (Emax) 1000, 1500, 2500, 4000 lbs
NTEP/OIML accuracy class NTEP Non- Approved C3 C6
Maximum no. of intervals (n) 3000 single 5000 multiple 1000 3000 (1) 6000(2)
Y = Emax/Vmin 12500 1400 12000 20000 Maximum available 20000
Rated output—R.O 2.0 for kg and 3.0 for lbs mV/V
Rated output tolerance 0.1 ±% of rated output
Zero balance 2 ±% of rated output
Zero return, 30 min. 0.015% for III/3000 Single 0.010% for III/5000 Multiple 0.0300 0.0170 0.0083 ±% of applied load
Total error 0.0200 0.0500 0.0200 0.0100 ±% of rated output
Temperature effect on zero 0.0023 0.0100 0.0023 0.0007 ±% of rated output/°C
Temperature effect on output 0.0010 0.0030 0.0010 0.00058 ±% of applied load/°C
Temperature range, compensated –10 to +40 °C
Temperature range, safe –30 to +80 °C
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 380±10 Ω
Output impedance 355±5 Ω
Insulation resistance >2000 MΩ
Cable length 5 m

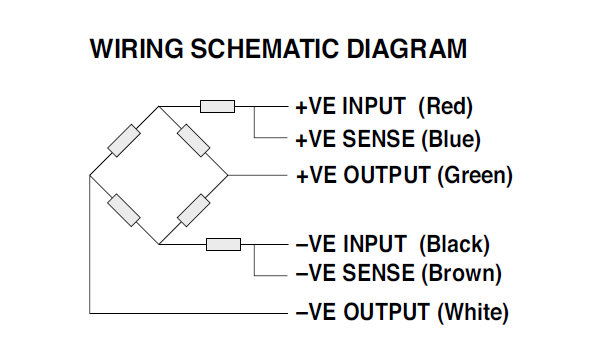

Cable type 6-wire, braided, polyurethane, dual loating screen Standard
Construction Stainless steel
Environmental protection IP68, IP69K
Recommended torque 136.0 (3000 and 5000 kg—205.0) N*m

(1) 50 % utilization
(2) Capacities 300–1200 kg, and 1000–2500 lbs only
All speciications subject to change without notice.
