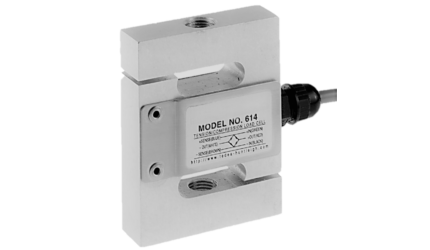

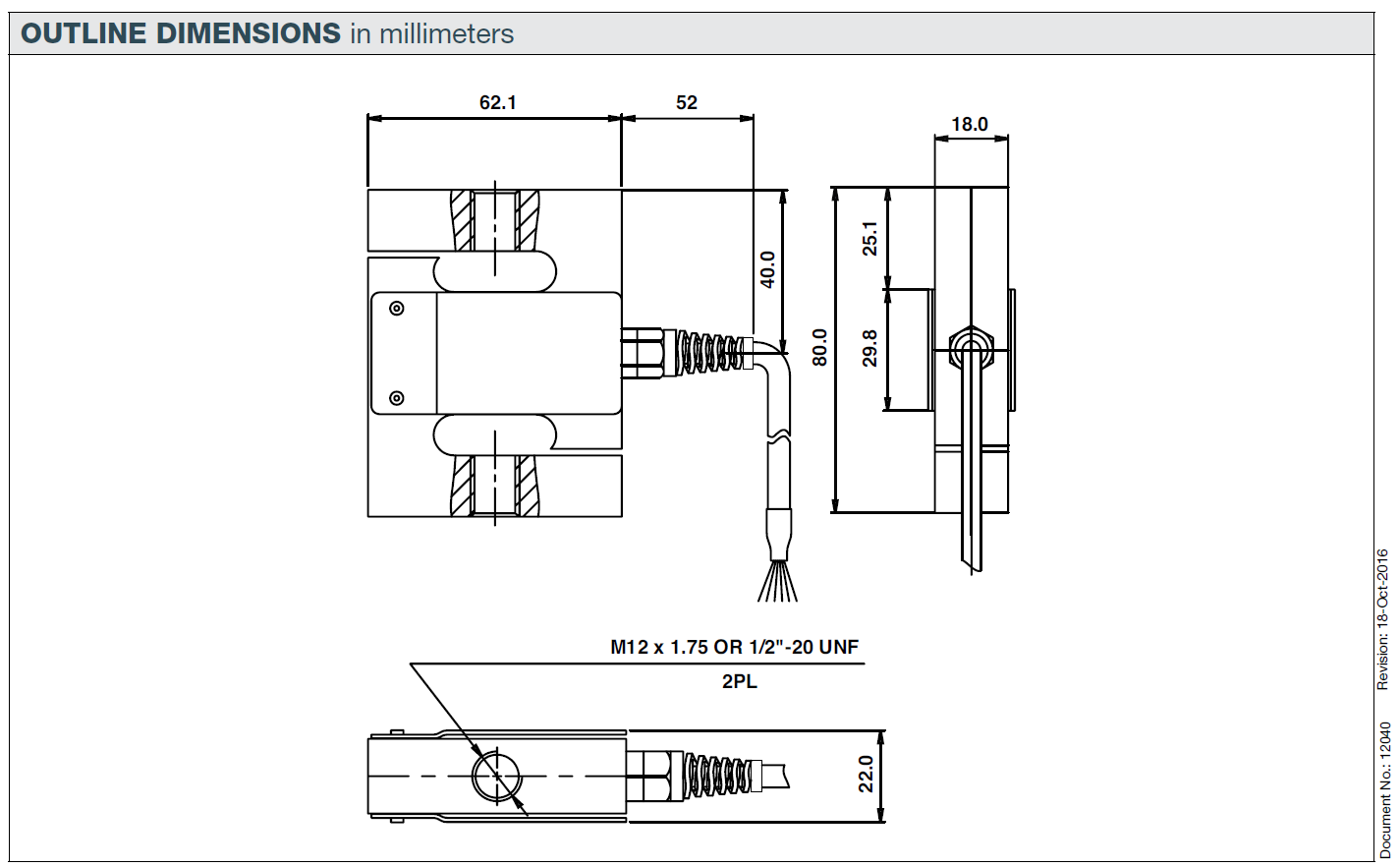

Model 614 Tension Compression Load Cell
FEATURES
• Capacities 50–500 kg
• Anodized aluminum construction
• OIML R60 approved
• IP67 protection
• For use in tension or compression
• 6 wire (sense) circuit
APPLICATIONS
• Hopper (Tank weighing)
• Hybrid scales
• Belt weighing
• Lever arm conversions
• Material testing machines
• Vibrations illing equipment
• Dynamometers
| SPECIFICATIONS | ||||
| PARAMETER | VALUE | UNIT | ||
| Rated capacity—R.C. (Emax) | 50, 100, 150, 200, 300, 500 | kg | ||
| Accuracy class | Non-Approved | C3* | ||
| Maximum no. of intervals (n) | 1000 | 3000 | ||
| Y = Emax/Vmin | 2500 | 8000 | 12000** | |
| Rated output—R.O. | 2.0 | mV/V | ||
| Rated output tolerance | 0.2 | ±% mV/V | ||
| Zero balance | 0.02 | ±% mV/V | ||
| Zero return, 30 min. | 0.05 | 0.017 | ±% of applied load | |
| Total error (per OIML R60) | 0.05 | 0.020 | ±% of rated output | |
| Temperature effect on zero | 0.01 | 0.0023 | ±% of rated output/°C | |
| Temperature effect on output | 0.003 | 0.0012 | ±% of load/°C | |
| Temperature range, compensated | –10 to +40 | °C | ||
| Temperature range, safe | –30 to +70 | °C | ||
| Maximum safe central overload | 150 | % of R.C. | ||
| Ultimate central overload | 300 | % of R.C. | ||
| Excitation, recommended | 10 | VDC or VAC RMS | ||
| Excitation, maximum | 15 | VDC or VAC RMS | ||
| Input impedance | 415±15 | Ω | ||
| Output impedance | 350±3 | Ω | ||
| Insulation resistance | >2000 | MΩ | ||
| Cable length | 3.0 | m | ||
| Cable type | 6-wire, braided PVC, dual loating screen | Standard | ||
| Construction | Plated (anodized) aluminum | |||
| Environmental protection | IP67 | |||
* 50% utilization
** Y=8000 for capacities 50–200 kg. Y=12000 for capacities 300–500 kg
All speciications are subject to change without notice.
