Revere Transducers / Model ACB Single-Ended Beam Load Cell

Revere Transducers / Model ACB Single-Ended Beam Load Cell

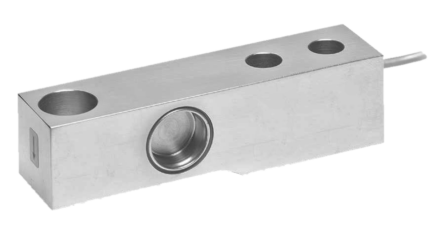

ACB load cell is a high accuracy stainless steel shear beam load cell suitable for small & medium platform scales, hybrid scales, pallet weighers and process weighing. The fully welded construction and the cable entry ensure that this product can be used successfully in harsh environments found in the food, chemical, and allied process industries. An integral mounting step removes the need for spacer plates and ensures optimum “bolt down” conditions. For hazardous environments is it available in an Atex approved version. Certified to OIML R60, 6000d. Hermetically sealed, IP66 and IP68

Category:
Tag:
브랜드: , ,

설명

Model ACB Single-Ended Beam Load Cell

FEATURES
• Capacities: 500 kg, 1 t, 2 t, and 5 t
• Low proile, stainless steel construction
• Hermetically sealed, IP66 and IP68
• Certiied to OIML R60, 6000d
• 1000 Ω bridge impedance
• Current calibration output (SC) ensures easy and
accurate connection of multiple load cells
• Integral mounting step
• Optional
❍ ATEX versions are available for use in potentially
explosive atmospheres, caused by gas or dust

APPLICATIONS
• Platform scales
• Belt scales
• Overhead track scales
• Silo hopper weighing

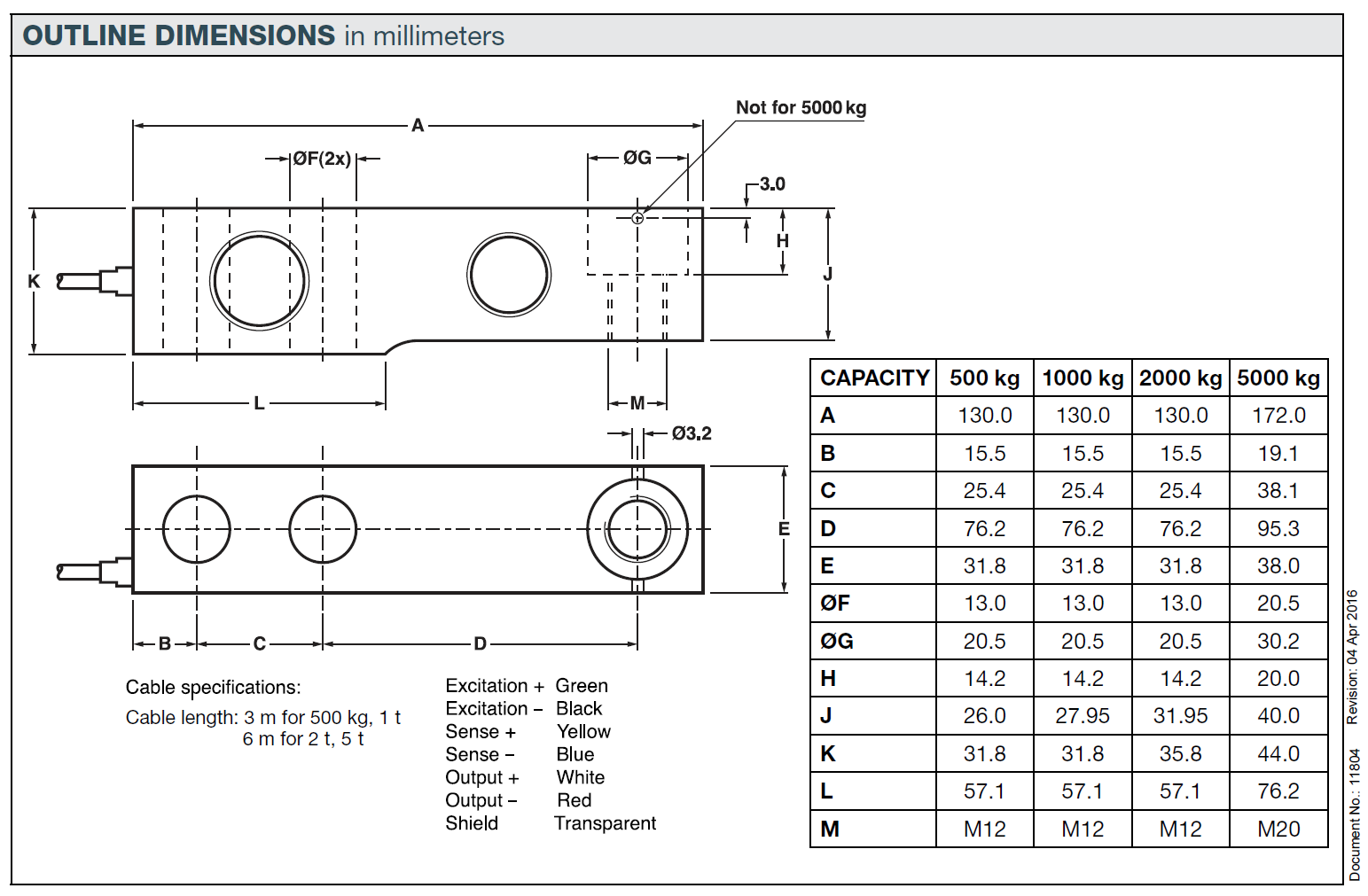

SPECIFICATIONS
PARAMETER VALUE UNIT
Standard capacities (Emax) 500, 1000, 2000, 5000 kg
Accuracy class according to OIML R-60 Non-Approved C3 C6 (1)
Maximum no. of verfication intervals (n)   3000 6000
Minimum verification interval, (Vmin Emax/Y)   Emax/6000 Emax/12,000
Minimum verification interval, Type MR   Emax/15,000 Emax/20,000
Rated output (=S) 2 mV/V
Tolerance on rated output 0.02 ±mV/V
Zero balance 1.0 ±% FSO
Combined error 0.0500 0.0230 0.0120 ±% FSO
Non-repeatability 0.070 0.035 0.018 ±% FSO
Minimum dead load output return 0.0500 0.017 0.008 ±% of applied load
Creep error (30 minutes) 0.0600 0.0245 0.012 ±% of applied load
Temperature effect on minimum dead load 0.0250 0.0117 0.0058 ±% FSO/5°C
Temperature effect on sensitivity 0.0250 0.0088 0.0045 ±% applied load/5°C
Maximum safe over load 150 % Emax
Ultimate over load 300 % Emax
Maximum safe side load 100 % Emax
Deflection at Emax 0.20, 0.20, 0.22, 0.31 mm
Excitation voltage 5 to 12 V
Maximum excitation voltage 15 V
Input resistance 1000±50 Ω
Output resistance 1000±10 Ω
Insulation resistance >5000 MΩ
Compensated temperature range –10 to +40 °C
Operating temperature range –40 to +80 °C
Storage temperature range –40 to +90 °C
Element material (DIN) Stainless steel 1.4542
Sealing (DIN 40.050 / EN60.529) IP66 and IP68
SC-Version (current calibration) Standard
Recommended torque on fixation bolts 150 N*m

(1) 500 kg is approved to C3 only FSO—Full Scale Output

SC-version: The rated output and the output resistance are balanced in such a way, that the output current is calibrated to within 0.05% of a reference value. This allows easy parallel connection of the load cells.

All speciications subject to change without notice.
