Model F1119 Hydraulic compression force transducer
Clamping force test instrument up to 120 kN

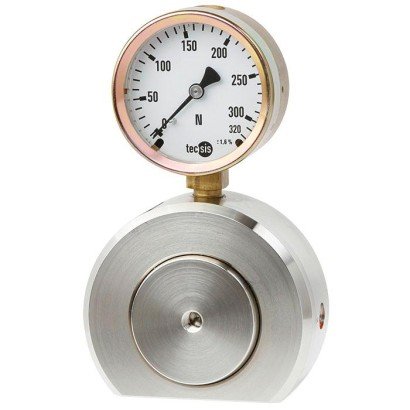

The model F1119 (NS 20) hydraulic force transducer enables the simple and economical measurement in vices and display of forces of measuring ranges from 320 N to 120 kN. The flattened case of this compression force transducer enables a stable force measurement.
The force is measured using the principle of hydraulics: The force acting on a piston leads to a pressure increase that can be visualised on a connected display instrument. The scale of the display instrument can be defined in various units, e.g. N, kN, kg, t.
Leak-tightness warranty
The warranty on leak tightness of the hydraulic force measuring unit was extended to 5 years. A force transducer that starts to leak within this period will be repaired free of charge.
Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.
Specifications per VDI/VDE/DKD 2638
| Parameter | Value |
|---|---|
| Rated force (Fnom) | 0 … 320 N up to 0 … 120 kN |
| Nominal size (NS) | 20 |
| Display – Standard | Pressure gauge 213.40 (NS 63) |
| Display – Option | Digital pressure gauge DG-10 |
| Optional (on request) | Pressure sensor |
| Relative linearity error (dlin) – Standard | ≤ ±1.6 % Fnom (analogue display) |
| Relative linearity error (dlin) – Option | ≤ ±0.5 % Fnom (pressure sensor / digital pressure gauge) |
| Limit force (FL) | 100 % Fnom |
| Breaking force (FB) | > 130 % Fnom |
| Rated displacement (snom) | < 0.5 mm |
| Rated temperature range (BT, nom) | -25 … +50 °C |
| Ingress protection | IP65 (per EN/IEC 60529) |
| Case material | Stainless steel |
| Piston material | Stainless steel |
| Mounting type – Standard | Direct |
| Mounting type – Option | Adapter / Capillary / Measuring hose (“separation without any losses”) |
| Fill fluid | Glycerine 70 % / Water 30 % |
| Weight | 1.8 kg (with pressure gauge 213.40 NS 63) |
| 2 kg (with digital pressure gauge DG-10) |
Dimensions in mm
| Rated Force (N/kN) | System Pressure (bar) | 213.40 | DG-10 | Measuring Hose DN 2 (max. L m) | Capillary (max. L m) |
|---|---|---|---|---|---|
| 320 N | 1.6 | ● | – | – | – |
| 500 N | 2.5 | ● | – | – | – |
| 800 N | 4 | ● | – | – | 1.0 |
| 1.2 kN | 6 | ● | – | 0.5 | 1.0 |
| 2 kN | 10 | ● | – | 1.0 | 2.0 |
| 3.2 kN | 16 | ● | – | 1.0 | 2.0 |
| 4 kN | 20 | – | ● | 1.5 | 2.0 |
| 5 kN | 25 | ● | – | 1.5 | 2.0 |
| 8 kN | 40 | ● | – | 1.5 | 2.0 |
| 10 kN | 50 | – | ● | 2.0 | 2.0 |
| 12 kN | 60 | ● | – | 2.0 | 2.0 |
| 20 kN | 100 | ● | ● | 2.0 | 2.0 |
| 32 kN | 160 | ● | ● | 2.0 | 4.0 |
| 50 kN | 250 | ● | ● | 3.2 | 4.0 |
| 60 kN | 315 | ● | – | 3.2 | 4.0 |
| 80 kN | 400 | ● | ● | 3.2 | 6.0 |
| 120 kN | 600 | ● | ● | 3.2 | 6.0 |
= possible selection
1) Relative linearity error < ±1.0 % Fnom
