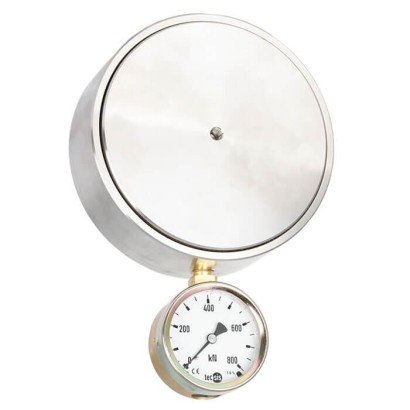

Model F1145 Hydraulic compression force transducer
Compact version up to 850 kN
The hydraulic compression force transducer model F1145 is available with a nominal size NS 141. Measurement of rated forces from 6 up to 850 kN is possible. The robust mechanical design enables use in harsh operating conditions. Applications for this hydraulic force measurement can be found in equipment manufacturing, in device and special machine building and also with measuring and control systems.
Hydraulic force transducers operate on the principle that the force acting on the piston is converted into a hydraulic pressure – in proportion to the piston surface area.
Via the connected measuring instrument, which can be either analogue or digital, the measured value is output. The scale of the connected pressure gauge can be defined in various units, e.g., in N, kN, kg, or even t.
Leak-tightness warranty
The warranty on leak tightness of the hydraulic force measuring unit was extended to 5 years. A force transducer that starts to leak within this period will be repaired free of charge.
Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.
Specifications per VDI/VDE/DKD 2638
| Model F1145 — Product Specifications | |
|---|---|
| Model | F1145 |
| Rated force Fnom | 0 … 6 kN to 0 … 850 kN |
| Nominal size NS | 141 |
| Display | ■■ Standard: Pressure gauge 213.40 (NS 63) ■■ Option: Digital pressure gauge DG-10; Pressure gauge PSG23.160 (NS 100), optionally with contacts; Pressure sensor (on request) |
| Relative linearity error dlin | ■■ Standard: ≤ ±1.6 % Fnom (analogue display)1) ■■ Option: ≤ ±0.5 % Fnom (pressure sensor/digital pressure gauge)1) |
| Limit force FL | 100 % Fnom |
| Breaking force FB | > 130 % Fnom |
| Rated displacement snom | < 0.5 mm |
| Rated temperature range BT, nom | -25 … +50 °C |
| Ingress protection (per EN/IEC 60529) | IP65 |
| Case | Stainless steel |
| Piston | Stainless steel |
| Mounting type | ■■ Standard: Direct ■■ Option: Adapter, capillary, measuring hose for “separation without any losses” |
| Fill fluid | Glycerine 70 %, water 30 % |
| Assembly aid | Threaded holes on the bottom of the case |
| Options | Spacer disc |
| Weight in kg | ■■ with pressure gauge 213.40 (NS 63): 5.6 kg ■■ with digital pressure gauge DG-10: 5.8 kg |
1) For rated forces below 500 N, the relative linearity error is ±1.6 % Fnom for all connected measuring instruments.

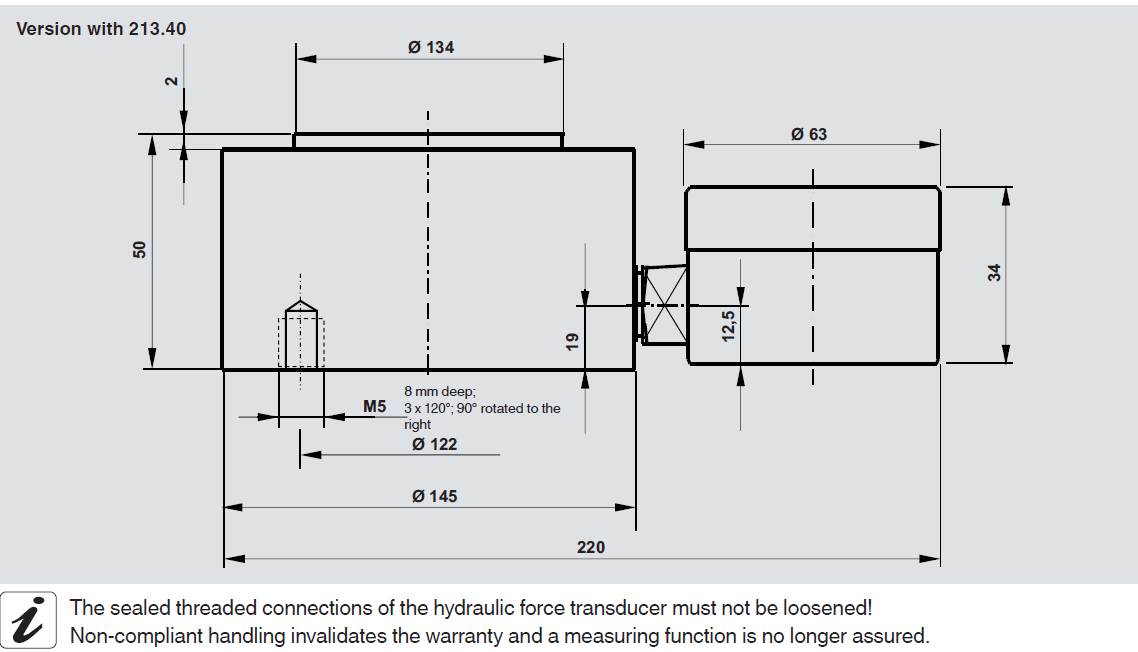

Dimensions in mm
| Version — Display Options | |||||
|---|---|---|---|---|---|
| Rated force (kN) | System pressure (bar) | 213.40 | DG-10 | Measuring hose DN 2 (max. L) (m) | Capillary (max. L) (m) |
| 6 | 4 | ✓ | – | – | 1.0 |
| 8 | 6 | ✓ | – | 0.5 | 1.0 |
| 14 | 10 | ✓ | – | 1.0 | 2.0 |
| 22 | 16 | ✓ | – | 1.0 | 2.0 |
| 28 | 20 | – | ✓1) | 1.5 | 2.0 |
| 34 | 25 | ✓ | – | 1.5 | 2.0 |
| 60 | 40 | ✓ | – | 1.5 | 2.0 |
| 70 | 50 | – | ✓ | 2.0 | 2.0 |
| 80 | 60 | ✓ | – | 2.0 | 2.0 |
| 140 | 100 | ✓ | ✓ | 2.0 | 2.0 |
| 220 | 160 | ✓ | ✓ | 2.0 | 4.0 |
| 350 | 250 | ✓ | ✓ | 3.2 | 4.0 |
| 450 | 315 | ✓ | – | 3.2 | 4.0 |
| 560 | 400 | ✓ | ✓ | 3.2 | 6.0 |
| 850 | 600 | ✓ | ✓ | 3.2 | 6.0 |
Other rated loads and versions on request.
1) See original documentation for details.
= possible selection
1) Relative linearity error < ±1.0 % Fnom
