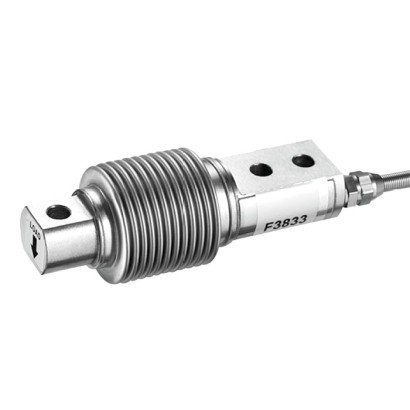

Model F3833 Bending beam
For rated loads up to 500 kg [1,102 lb]
The model F3833 bending beam is suitable for static and dynamic measuring requirements in both tension and compression force direction. It serves for determining bending forces or weights in diverse application areas.
This bending beam is used in industrial weighing and laboratory technology, and also in the process industry, and features high measurement accuracy.
The bending beam is also used for gravimetric level measurement of vessels such as silos or tanks.
Various load feet and mounting kits are available for mounting or attachment to the base.
Depending on the application, corresponding approvals are available.
The material of the measuring body is stainless steel.
An mV/V signal is available as a standard output signal, which can be amplified to an analogue signal using a cable amplifier or summed via a junction box. A junction box with up to four inputs is available for combining several bending beams.
The measured weight can be displayed using a weighing indicator.
In combination with the model NETRIS®F radio unit, the measured values of the instrument can be transmitted wirelessly. This radio unit can be used to realise solutions for web-based remote monitoring.
Specifications
| Basic information | |
| Standard | In accordance with directive VDI/VDE/DKD 2638 |
| Material of the measuring body | Stainless steel |
| Ingress protection (per IEC/EN 60529) | IP68 |
| Weight | 0.6 kg [1.3 lb] |
| Measuring element | |
| Type of measuring element | Strain gauge |
| Working range | Determination of bending forces or weights in the tension or compression force direction |
| Input resistance Re | 385 ±10 Ω |
| Output resistance Ra | 350 ±5 Ω |
| Accuracy specifications | |
| Relative linearity error dlin | ± 0.02 % Fnom |
| Relative creep, 30 min. at Fnom | ± 0.02 % Fnom |
| Relative reversibility error v | ≤ ± 0.02 % Fnom |
| Relative deviation of zero signal dS,0 | ±2 % Fnom |
| Temperature effect on zero signal TC0 | ≤ ±0.02 % / 10 K |
| Temperature effect on characteristic value TCC | ≤ ±0.02 % / 10 K |
| Rated load Fnom | |
| kg | lb |
| 5 | 11 |
| 10 | 22 |
| 20 | 44 |
| 30 | 66 |
| 40 | 88 |
| 50 | 110 |
| 75 | 165 |
| 100 | 221 |
| Further details on the rated load | |
| Force limit FL | 150 % Fnom |
| Breaking force FB | 300 % Fnom |
| Output signal | |
| Rated characteristic value Cnom | 2.0 ±0.02 mV/V |
| Supply voltage UB | DC 10 V (max. 15 V) |
| Electrical connection | |
| Connection type | Cable |
| Cable diameter | 5 mm [0.2 in] |
| Cable length | 3,000 mm [118 in] |
| Insulation resistance Ris | ≥ 5,000 MΩ / DC 100 V |
| Material | PVC |
Pin assignment
| Signal | Cable colour | |
| Exc+ | Supply voltage + | Red |
| Exc- | Supply voltage – | Black |
| Sig+ | Signal + | Green |
| Sig- | Signal – | White |
| Shield | Shield | Green-yellow |
For products with raw signals (mV/V)
| Operating conditions | |
| Rated temperature range BT, nom | -10 … +40 °C [14 … +104 °F] |
| Operating temperature range BT, G | -20 … +80 °C [-4 … +176 °F] |

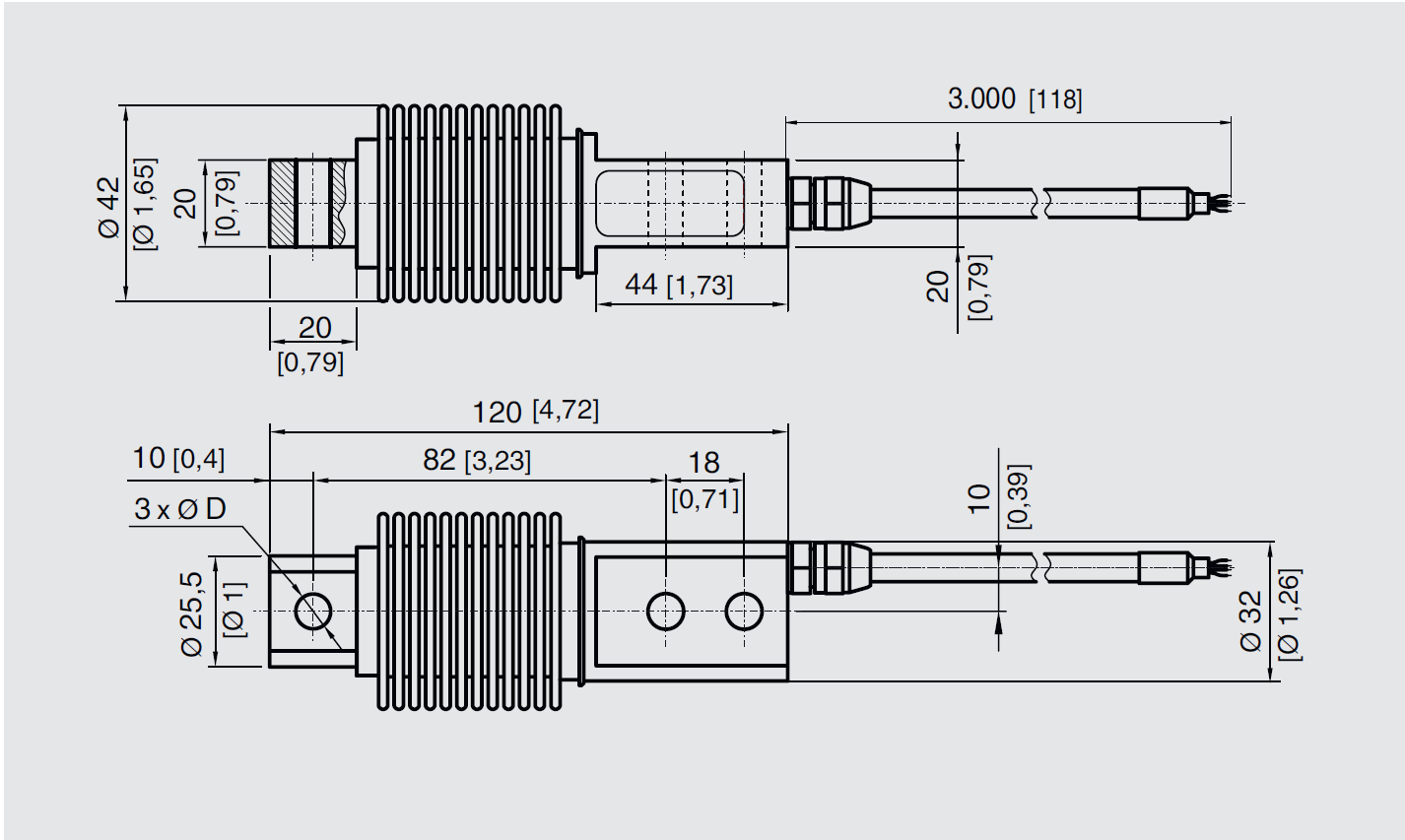

Dimensions in mm [in]
| Rated load in kg | Dimensions in mm |
| ØD | |
| 5 … 250 | 8.2 |
| 300, 500 | 10.2 |
| Rated load in lb | Dimensions in Inch |
| ØD | |
| 11 … 551 | 0.32 |
| 661, 1,102 | 0.39 |
Dimensioning: The customer-specific drawing of the respective order number has priority
