Single point load cell, model F4802
Description

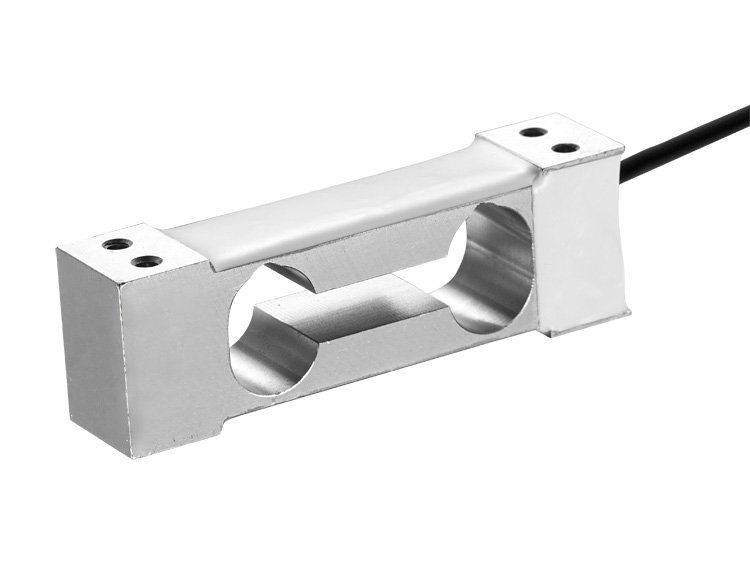

The model F4802 single point load cells are a series of aluminium single point load cells suitable for a wide range of applications. Thanks to their standardised geometry and simple design, they can be easily installed in all types of scales.
The model F4802 load cells are used in various areas such as industry, commerce, medicine and research. The most common application area is in precision, industry and bench scales as well as belt weighers, to measure the weight of products (e.g., food, bulk material, feed). Load cells are also used in the packaging industry, manufacturing as well as material testing.
The single point load cells feature high accuracy and a quick reponse. Moreover, they are insensitive to lateral and corner loads. The load cells are easy to handle due to their simple force introduction. This is made perpendicular to the geometry.
Specifications per VDI/VDE/DKD 2638
| Technical Data | Specification |
|---|---|
| Model | F4802 |
| Rated Load (Fnom) – kg | 0.3 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 5 / 10 |
| Rated Load (Fnom) – lbs | 0.7 / 1.1 / 2.2 / 3.3 / 4.4 / 7 / 9 / 11 / 22 |
| Relative Linearity Error (dlin) | ± 0.02 % Fnom |
| Relative Creep (30 min) | ± 0.02 % Fnom |
| Relative Reversibility Error (v) | ± 0.02 % Fnom |
| Relative Deviation of Zero Signal (dS, 0) | ± 2 % Fnom |
| Temperature Effect on Zero Signal (TK0) | ≤ ± 0.02 % / 10 K |
| Temperature Effect on Characteristic Value (TKC) | ≤ ± 0.02 % / 10 K |
| Force Limit (FL) | 150 % Fnom |
| Breaking Force (FB) | 200 % Fnom |
| Measuring Body Material | Aluminium |
| Rated Temperature Range (BT, nom) | −10 … +40 °C [+14 … +104 °F] |
| Operating Temperature Range (BT, G) | −20 … +60 °C [−4 … +140 °F] |
| Input Resistance (Re) | 410 ± 10 Ω |
| Output Resistance (Ra) | 350 ± 5 Ω |
| Insulation Resistance (Ris) | ≥ 2,000 MΩ / DC 100 V |
| Output Signal (Cnom) | 2.0 ± 0.2 mV/V |
| Electrical Connection | Measuring cable ∅ 3 × 450 mm [∅ 0.12 × 17.72 in] |
| Supply Voltage (UB, nom) | DC 10 V (max. 15 V) |
| Ingress Protection (IEC/EN 60529) | IP65 |
| Platform Size | 200 × 200 mm [7.87 × 7.87 in] |
| Weight | 0.1 kg [0.22 lbs] |

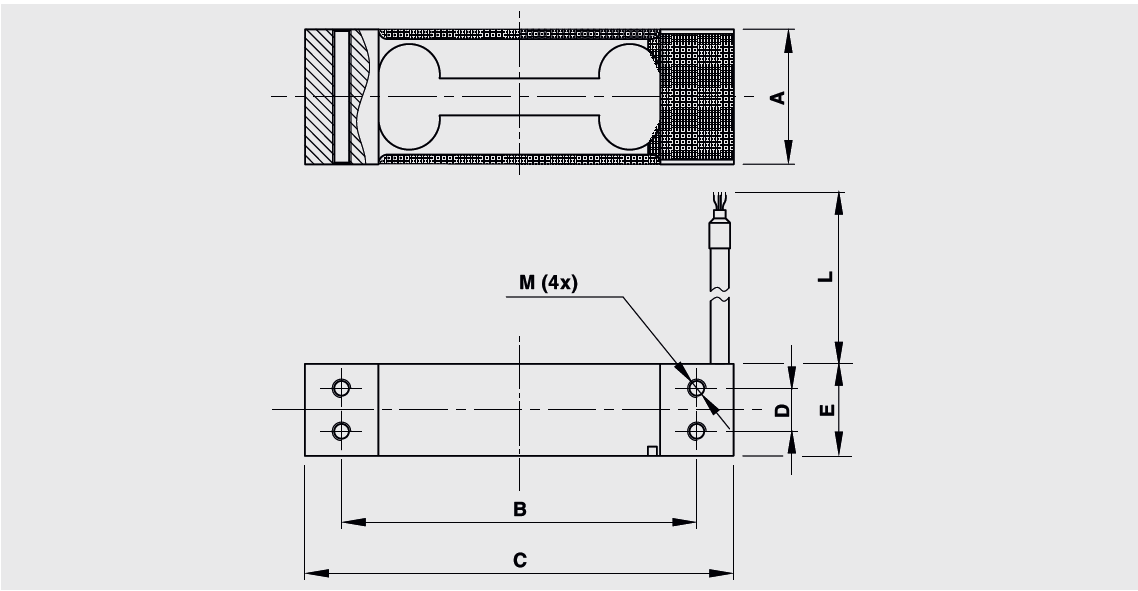

Dimensions in mm [in]
