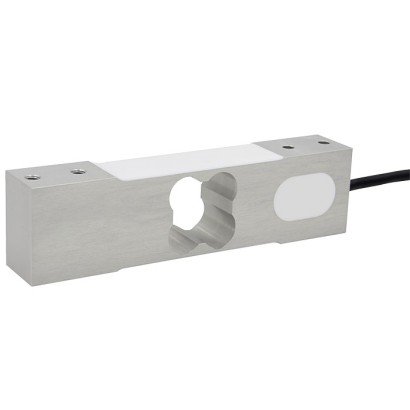

Single point load cell, Model F4885
The model F4885 single point load cells are a range of aluminium single point load cells suitable for a wide range of applications. Thanks to their standardised geometry and simple design, they can be easily installed in all types of scales.
The model F4885 load cells are adapted to the special requirements of checkweighers and feature a particularly short settling time, so that the weight of the goods being recorded can be determined as quickly as possible.
The load cells are also suitable for use in sectors such as industry, commerce, medicine and research.
The model F4885 single point load cells also feature high accuracy and react quickly. They are also insensitive to lateral and corner loading.
The load cells are easy to handle due to their simple force introduction. This is made perpendicular to the geometry.
Specifications per VDI/VDE/DKD 2638
| Parameter | Value |
|---|---|
| Rated load (Fnom) | 1 / 3 / 5 / 7 / 10 / 15 / 20 / 50 / 75 / 100 / 150 / 200 kg |
| Rated load (Fnom) | 2.2 / 7 / 11 / 15 / 22 / 33 / 44 / 110 / 165 / 220 / 331 / 441 lbs |
| Relative linearity error (dlin) | ±0.02 % Fnom |
| Relative creep, 30 min | ±0.02 % Fnom |
| Relative reversibility error (v) | ±0.02 % Fnom |
| Relative deviation of zero signal (dS₀) | ±5 % Fnom |
| Temperature effect on zero signal (TK₀) | ≤ ±0.014 % / 10 K |
| Temperature effect on characteristic value (TKC) | ≤ ±0.02 % / 10 K |
| Force limit (FL) | 150 % Fnom |
| Breaking force (FB) | 300 % Fnom |
| Material of measuring body | Aluminium |
| Rated temperature range (BT, nom) | -10 … +40 °C [14 … 104 °F] |
| Operating temperature range (BT, G) | -20 … +65 °C [-4 … 149 °F] |
| Input resistance (Re) | 410 ±20 Ω |
| Output resistance (Ra) | 350 ±5 Ω |
| Insulation resistance (Ris) | ≥ 2,000 MΩ / DC 100 V |
| Output signal (Cnom) | 2.0 ±0.2 mV/V |
| Electrical connection | Measuring cable ∅ 5 × 3,000 mm [∅ 0.197 × 118 in] |
| Supply voltage (UB, nom) | DC 5 … 10 V (max. 15 V) |
| Ingress protection | IP67 |
| Platform size | 450 × 450 mm [17.72 × 17.72 in] |
| Weight | 0.5 kg [1.1 lbs] |
1) Relative linearity error is specified in accordance with guideline VDI/VDE/DKD 2638 chap. 3.2.6.
