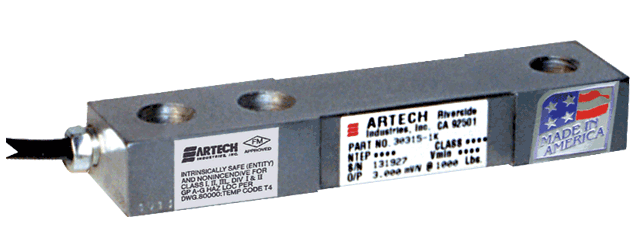

30315 Load Cell
DESCRIPTION:
A Ultra low profile load cell designed for multiple use in low profile and platform scales. The high alloy steel construction ensures durability and precision performance. The cell is environmentally protected with a water resistant seal and is nickel / chrome plated to assure resistance against corrosion
- 1K to 5K pounds capacities
- Environmentally Sealed
- Nickel Plated Steel
- Total Height of 0.75 inches
- 20 Ft. PVC Jacket Cable
- Stainless Steel version available
SPECIFICATIONS:
| Standard Capacities (Lbs.) | 1K, 2K, 2.5K, 3K, 4K, 5K |
|---|---|
| Excitation Voltage | 10VDC – Maximum 15VDC |
| Rated Output | 3.0 mv/v |
| Non-Linearity | < 0.03% FSO (Full Scale Output) |
| Hysteresis | < 0.02% FSO |
| Non-Repeatability | < 0.01% FSO |
| Zero Balance | ± 1.0% FSO |
| Bridge Resistance | 350 ohms |
| Safe Overload | 150% of Rated Capacity |
| Temperature – Compensated Range | 0 – 150 deg. F |
| Temperature – Effect of Output | < 0.0008% FSO/deg. F |
| Temperature – Effect on Zero | < 0.0011% FSO/deg. F |
| Finish | Electroless Nickel/Chrome Plated |

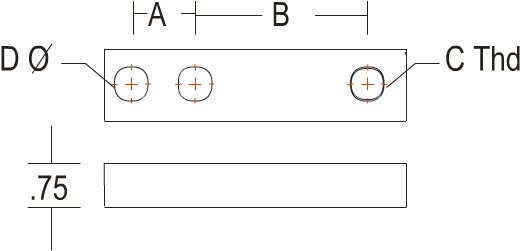

DIMENSIONS:
| CAPACITY (Lbs.) | A | B | C | D | E |
|---|---|---|---|---|---|
| 1K-5K | 1 | 3 | 43832 | 0.53 | 0.75 |
APPLICATIONS:
- Low Profile Floor Scales
- Tank, Hopper & Bag Weighing
- Force & Tension Measurement
- Pallet Scales
- Industrial Automation
