70210 Load Cell
DESCRIPTION:

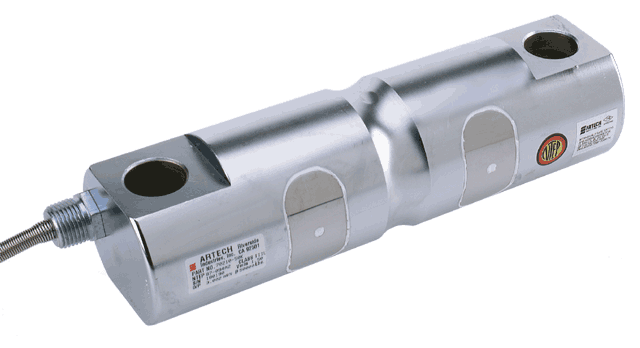

Model 70210, a double ended shear beam, is ideal for low profile pitless truck scales, tank and track scales. The cell is constructed of high alloy tool steel for repeatability and use in rugged areas where shock and overloading situations exist. The gage areas are environmentally protected with a thick, double water resistant seal and stainless steel plates. Load cells are supplied with an integral 30 feet of cable.
- 5K to 250K pound capacity
- Environmentally protected / IP67
- Mounting hardware available for various applications
- NTEP certified versions available for Class III 5000 division, Class III L 10000 division.
- Stainless Steel version available
- Factory Mutual (F.M.) Approved
- LE version also available for 15K, 20K, and 150K pound capacities
SPECIFICATIONS:
| Standard Capacities (lbs.) | 5K, 10K, 20K, 50K, 60K, 100K, 150K, 200K, 250K |
|---|---|
| Excitation Voltage | 10VDC – Maximum 15VDC |
| Rated Output | 3.0 mv/v ± 0.10% |
| Non-Linearity | < 0.03% FSO (Full Scale Output) |
| Hysteresis | < 0.02% FSO |
| Non-Repeatability | < 0.01% FSO |
| Zero Balance | ± 1.0% FSO |
| Bridge Resistance | 700 ohms ±7.0 ohms |
| Safe Overload | 150% of Rated Capacity |
| Temperature – Compensated Range | 0 – 150 deg. F |
| Temperature – Effect of Output | < 0.0008% FSO/deg. F |
| Temperature – Effect on Zero | < 0.0011% FSO/deg. F |
| Material/Finish | Nickel/Chrome Plated |

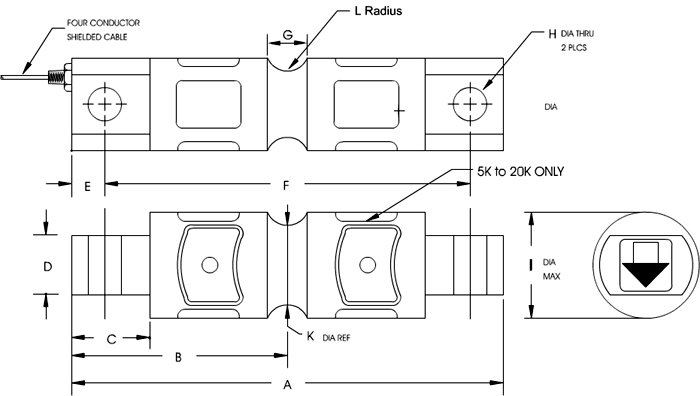

DIMENSIONS:
| CAPACITY (Lbs.) | A | B | C | D | E | F | G | H | I | L RAD. | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5K-20K | 8.12 | 4.06 | 1.44 | 1.12 | 0.62 | 6.87 | 0.62 | 0.65 | 1.75 | 0.5 | 1.48 |
| 50K-65K | 10.25 | 5.12 | 1.87 | 2.36 | 0.88 | 8.5 | 1 | 1.06 | 3 | 1 | 2.75 |
| 100K-150K | 11.25 | 5.62 | 1.87 | 2.5 | 0.88 | 9.5 | 1 | 1.06 | 3.5 | 1 | 3.25 |
| 200K-250K | 16.1 | 8.05 | 3.05 | 4.6 | 1.55 | 13 | 1.5 | 1.56 | 5.38 | 2 | 5.17 |
APPLICATIONS:
- Tensile Testing
- Force Measurement
- Crane Scales
- Tank and Hopper Weighing
- Truck Scales
