SS 30210 Load Cell
DESCRIPTION:
A versatile Load Cell designed for multiple cell use in low profile and platform scales, and in tank, bin, and hopper weighing systems. The high alloy steel construction ensures durability and precision performance. The cell is environmentally protected with water resistant seal and is stainless steel to assure resistance against corrosion. Mounting hardware is also available
- Model SS30210 (stainless steel through hole version)
- 250 to 20K pounds capacities
- Complete environmental protection (IP 67)
- NTEP certified versions available for class III 5,000 divisions / III L 10,000 divisions
- Factory Mutual (F.M.) Approved
SPECIFICATIONS:
| Standard Capacities (lbs.) | *250, *500, 1K, 2K, 2.5K, 3K, 4K, 5K, 5KLE, 10K, 15K, 20K (* Bending Beam) |
|---|---|
| Excitation Voltage | 10VDC – Maximum 15VDC |
| Rated Output | 3.0 mv/v + 0.25% |
| Non-Linearity | < 0.03% FSO (Full Scale Output) |
| Hysteresis | < 0.02% FSO |
| Non-Repeatability | < 0.01% FSO |
| Zero Balance | ± 1.0% FSO |
| Bridge Resistance | 350 ohms ±3.5 ohms |
| Safe Overload | 150% of Rated Capacity |
| Temperature – Compensated Range | 0 – 150 deg. F |
| Temperature – Effect of Output | < 0.0008% FSO/deg. F |
| Temperature – Effect on Zero | < 0.0011% FSO/deg. F |
| Material/Finish | Stainless Steel |

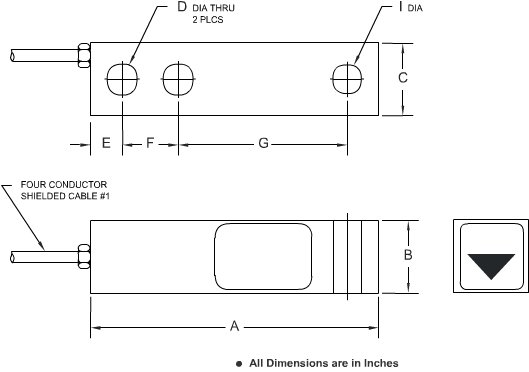

DIMENSIONS:
| CAPACITY (Lbs.) | A | B | C | D | E | F | G | I Dia. |
|---|---|---|---|---|---|---|---|---|
| 250-5K | 5.12 | 1.25 | 1.25 | 0.53 | 0.6 | 1 | 3 | 0.53 |
| 5KLE-10K | 6.75 | 1.5 | 1.5 | 0.78 | 0.75 | 1.5 | 3.75 | 0.78 |
| 15K – 20K | 8.75 | 2 | 2 | 1.03 | 1 | 2 | 4.75 | 1.03 |
APPLICATIONS:
- Low Profile Floor Scales
- Tank, Hopper & Bag Weighing
- Force & Tension Measurement
- Pallet Scales
- Industrial Automation
- Bending Beam Design – only for 250 to 500 lbs. capacities
