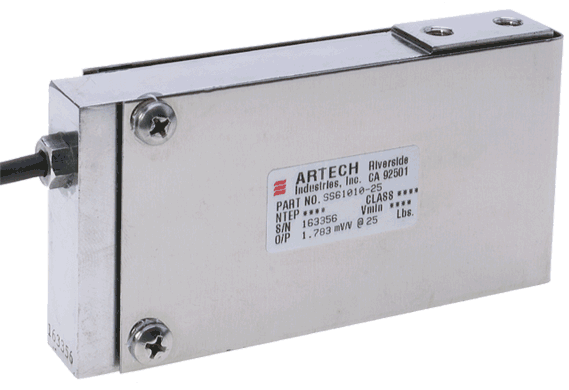

SS 61010 Load Cell
DESCRIPTION:
Model SS61010 single-point load cell is designed for any application where the cell may be subject to overload by mishandling or excess weighing. The stainless steel construction makes it an ideal choice for installation in corrosive environments such as those found in the poultry industry. As standard the cell has the gaged area potted to protect it from moisture. The load cell is provided with 10 feet of cable
- 10 to 100 pounds capacities
- Environmentally protected
- Tension and compression overload stops
- Interchangeable with MK-IV
- Stainless Steel or Nickel Plated Steel
- Factory Mutual (F.M.) Approved
SPECIFICATIONS:
| Standard Capacities (lbs.) | 10, 15, 25, 30, 50, 100 |
|---|---|
| Excitation Voltage | 10VDC – Maximum 15VDC |
| Rated Output | 2.0 mv/v Minimum |
| Non-Linearity | < 0.03% FSO (Full Scale Output) |
| Hysteresis | < 0.02% FSO |
| Non-Repeatability | < 0.01% FSO |
| Zero Balance | ± 2.0% FSO |
| Bridge Resistance | 350 ohms nominal |
| Safe Overload | 150% of Rated Capacity |
| Temperature – Compensated Range | 0 – 150 deg. F |
| Temperature – Effect of Output | < 0.0008% FSO/deg. F |
| Temperature – Effect on Zero | < 0.0011% FSO/deg. F |
| Material/Finish | Stainless Steel |

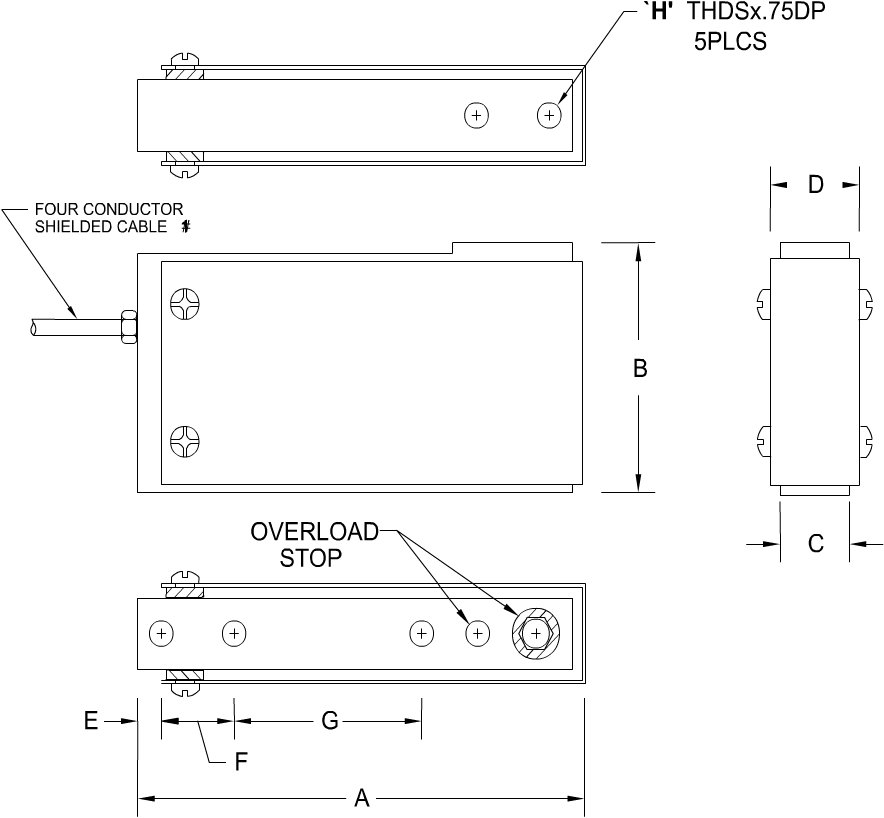

DIMENSIONS:
| CAPACITY (Lbs.) | A | B | C | D Max. | E | F | G | H Threads |
|---|---|---|---|---|---|---|---|---|
| 10 – 100 | 4.63 | 2.45 | 0.7 | 0.9 | 0.25 | 0.75 | 2 | 1/4-28 UNF 2B |
APPLICATIONS:
- Low capacity platform scales
- Multiheaded packaging machines
- Check weighers
- Loss-in-weight feeders
- Belt scales
- Process weighing applications
- Poultry Scales
