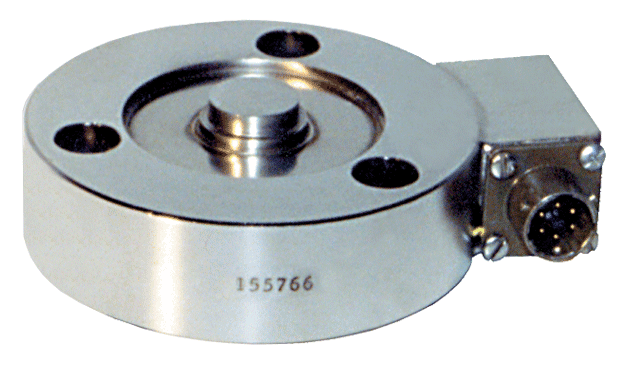

SS 833 Load Cell
DESCRIPTION:
- Capacity range 2K – 400K pounds
- Shear Web Design
- Hermetically Sealed, Stainless Steel
- Dual Bridge Configuration, Optional
- 20 Ft. Polyurethane Cable, Optional Connector
SPECIFICATIONS:
| Standard Capacities (lbs.) | 2K, 3K, 4K, 5K, 7.5K, 10K, 15K, 20K, 30K, 50K, 75K, 100K, 150K, 200K, 300K, 400K |
|---|---|
| Excitation Voltage | 10VDC – Maximum 15VDC |
| Rated Output | 3.0 mv/v ± 0.1% |
| Non-Linearity | ± 0.1% FSO |
| Hysteresis | ± 0.1% FSO |
| Non-Repeatability | ± 0.03% FSO |
| Zero Balance | ± 1.0% FSO |
| Bridge Resistance | 350 ohms |
| Safe Overload | 150% FSO |
| Temperature – Compensated Range | 0 – 150 deg. F |
| Temperature – Effect of Output | < 0.002% FSO/deg. F |
| Temperature – Effect on Zero | < 0.002% FSO/deg. F |
| Material/Finish | Stainless Steel |

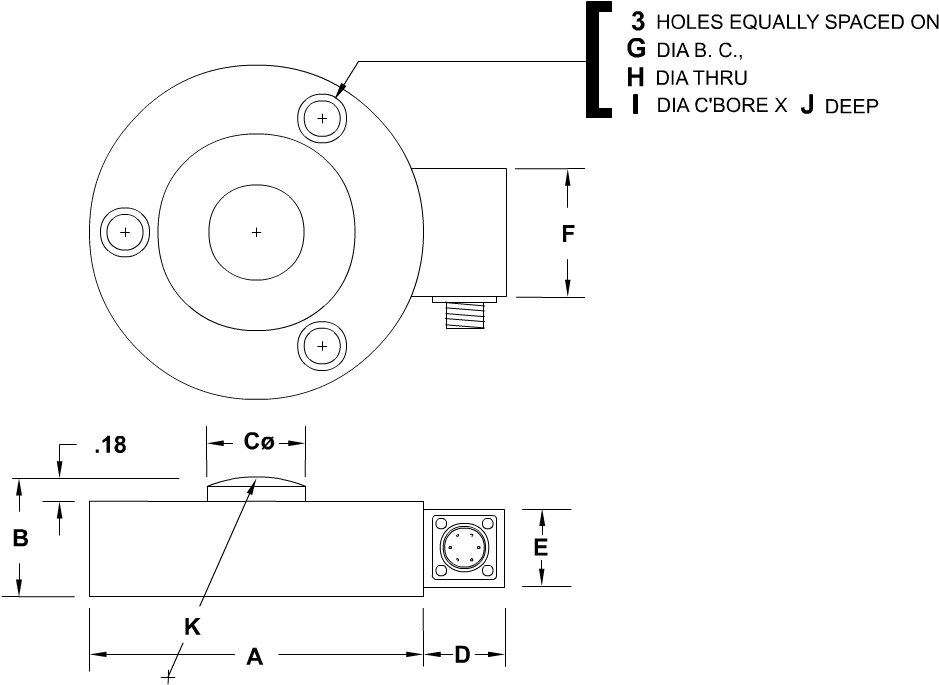

DIMENSIONS:
| CAPACITY (Lbs.) | A | B | C | D | E | F | G Dia. | H Dia. | I Dia. | J Dp. | K Rad. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2K – 5K | 3.5 | 1.18 | 0.69 | 0.82 | 0.75 | 1.25 | 2.625 | 0.328 | 0.485 | 0.34 | 2.5 |
| 7.5K – 100K | 4.5 | 2 | 1.5 | 1.25 | 1.5 | 2 | 3.79 | 0.39 | 0.578 | 0.4 | 6 |
| 150K – 200K | 5.5 | 2.18 | 2 | 1.25 | 1.5 | 2 | 4.812 | 0.39 | 0.578 | 0.4 | 17 |
| 300K | 7 | 2.68 | 2.5 | 1.25 | 1.5 | 2 | 6 | 0.39 | 0.578 | 0.4 | 17 |
| 400K | 7.5 | 2.68 | 2.5 | 1.25 | 1.5 | 2 | 6.75 | 0.39 | 0.578 | 0.4 | 17 |
APPLICATIONS:
- Tube Mills
- Extruding Processes
- Process Weighing
