SS 90210 Tension & Comp. Canister Load Cell
DESCRIPTION:

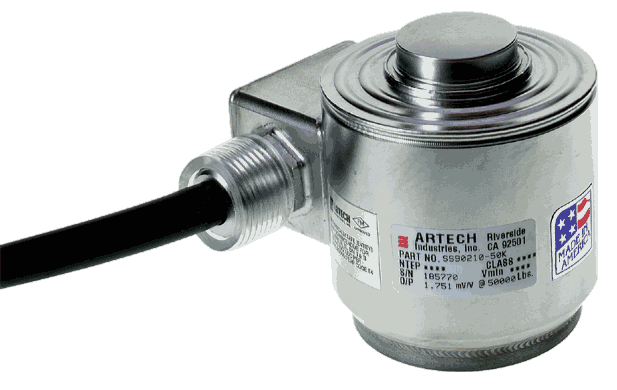

Model SS90210 is a multicolumn compression type load cell. It is hermetically sealed to provide better environmental protection. The cell is recommended for tank, truck, track and hopper type industrial applications. The cell is supplied with an integral 30 foot cable
- 10K – 500K pounds capacities
- Direct replacement for CP, 392B model
- Multicolumn Construction
- Stainless Steel Construction
- Exceeds NIST H-44 requirements
- Low cost
- CSP and 692B replacement versions available as model 90310
- Factory Mutual (F.M.) Approved
SPECIFICATIONS:
| Standard Capacities (lbs.) | 10K, 25K, 50K, 100K, 200K, 300K, 500K |
|---|---|
| Excitation Voltage | 20VDC |
| Rated Output | 1.75 mv/v ± 0.1% |
| Non-Linearity | < 0.15% FSO (Full Scale Output) |
| Hysteresis | < 0.03% FSO |
| Non-Repeatability | < 0.02% FSO |
| Zero Balance | ± 1.0% FSO |
| Bridge Resistance | 450 ohms ± 1.0% (Input) 480 ohms ± 1.0% (Output) |
| Safe Overload | 150% of Rated Capacity |
| Temperature – Compensated Range | 0 – 150 deg. F |
| Temperature – Effect of Output | < 0.0008% FSO/deg. F |
| Temperature – Effect on Zero | < 0.0011% FSO/deg. F |
| Material/Finish | Stainless Steel |

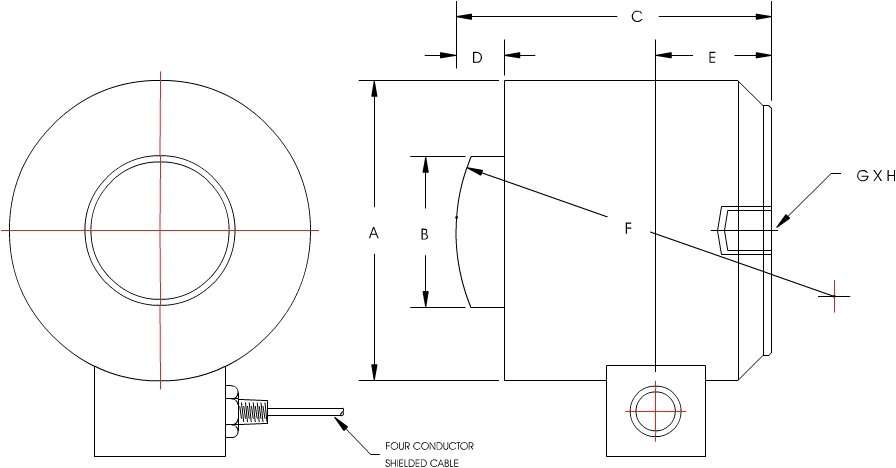

DIMENSIONS:
| CAPACITY (Lbs.) | A | B | C | D | E | F Sph Rad | H Deep | G Threads |
|---|---|---|---|---|---|---|---|---|
| 10K – 50K | 2.87 | 1.25 | 3.25 | 0.4 | 1.28 | 6 | 0.3 | 1/2 – 20 UNF – 2B |
| 100K | 4.12 | 2.31 | 5 | 0.5 | 2.15 | 6 | 0.55 | 3/4 – 16 UNF – 2B |
| 200K – 300K | 6 | 3.13 | 7.25 | 1.04 | 3.31 | 17 | 0.75 | 3/4 – 16 UNF – 2B |
| 500K | 6.53 | 3.69 | 9 | 0.56 | 4.25 | 17 | 0.75 | 3/4 – 16 UNF – 2B |
APPLICATIONS:
- Truck and Track Scales
- Tank Weighing
- Hopper Weighing
- Compressive Force Testing
- Industrial Automation
