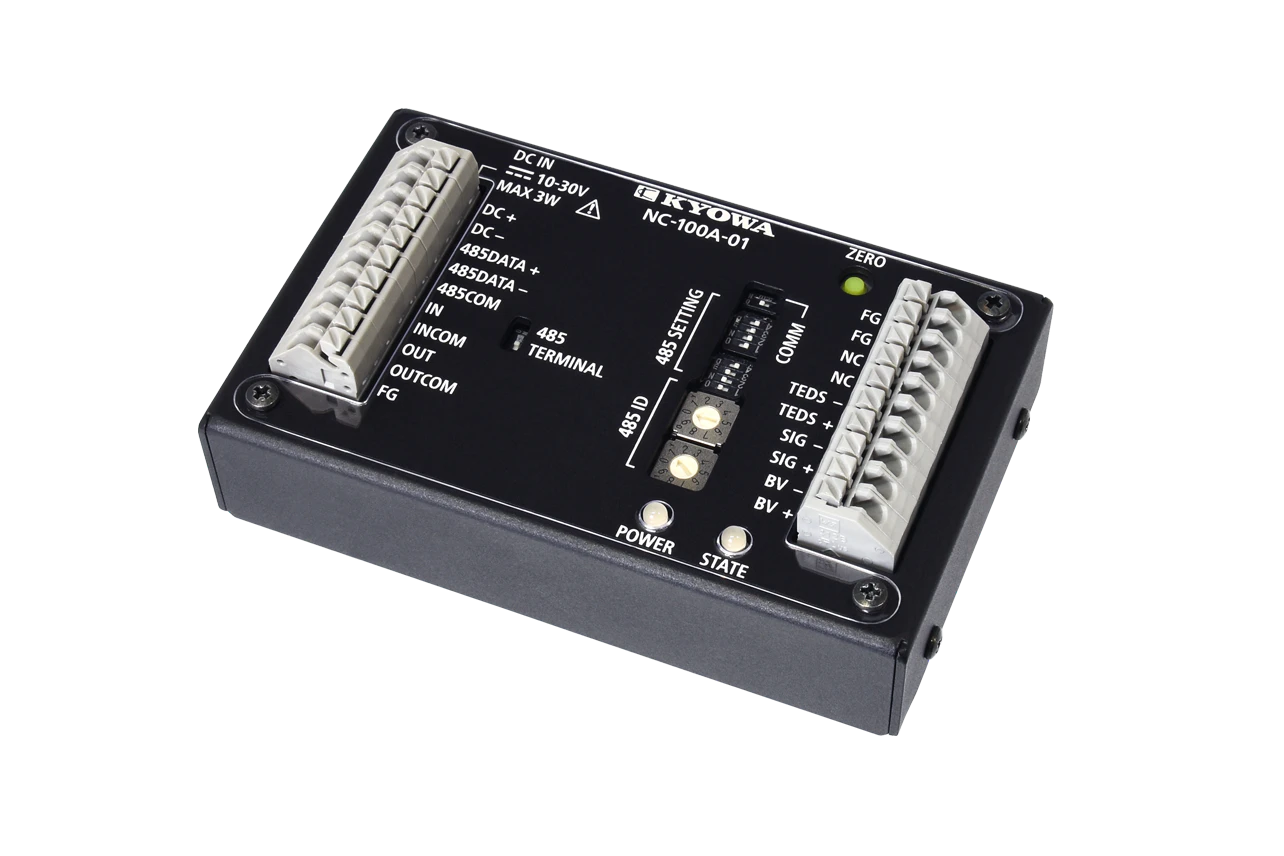

KYOWA NC-100A Digital Conversion Unit

KYOWA NC-100A Digital Conversion Unit

These measuring instruments convert the output of strain gage sensors into digital signals. By installing near a sensor, they suppress noise effects on sensor output while digitization enables long-distance transmission. Channels: 1

Category:
Tags: ,
브랜드:

설명

NC-100A Digital Conversion Unit

Features
  • Easily digitize sensor signals
  • Installed near the sensor
  • Wide input range (±7.5 mV/V)
  • Lightweight (Approx. 100 g)

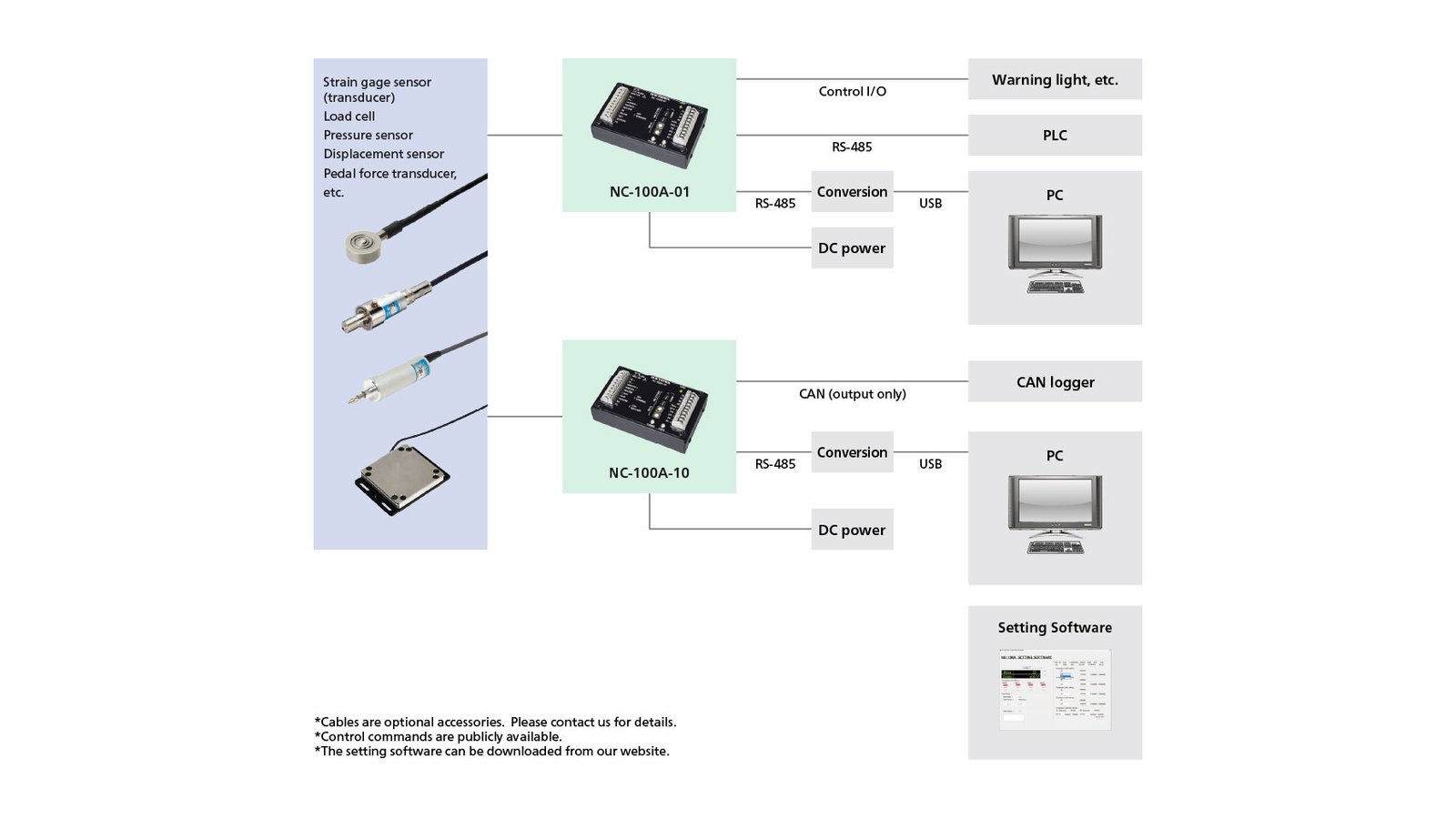

System Configuration

Main Specifications

Model NC-100A-01 NC-100A-10
Communication Interface RS-485 RS-485, CAN (Output only)
Channels 1
Measuring Targets Strain-gage transducers (TEDS compatible)
Sampling Speed 2404 times/s
Weight Approx. 100 g
Dimensions 57.4 W × 92.0 D × 20.0 H mm (Excluding protrusions)
Control IO ● –
CAN – ●
Comparator 4
