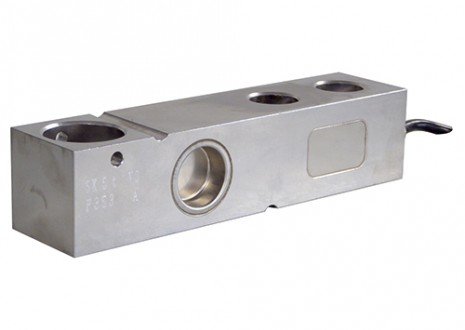

Shear Beam Load Cell SK30X-5t with a Rated Load of 3 t … 5 t
PRODUCT FEATURES
- Shear beam load cell made of stainless steel, hermetically welded (Protection class IP68)
- Up to 4000d OIML R60 approved
- Specially designed for industrial platform scales
- 6-wire configuration
- Calibrated signal output for multi-load cell mounting
- ATEX 2014/34/EU version available for hazardous areas (optional)
APPLICATIONS
- Hoppers, tanks, mixers, or conveyors
- Beverages and food industry
- Mining, metals, and minerals
- Chemical and pharmaceutical industry
- Waste management / recycling
- Packaging technology

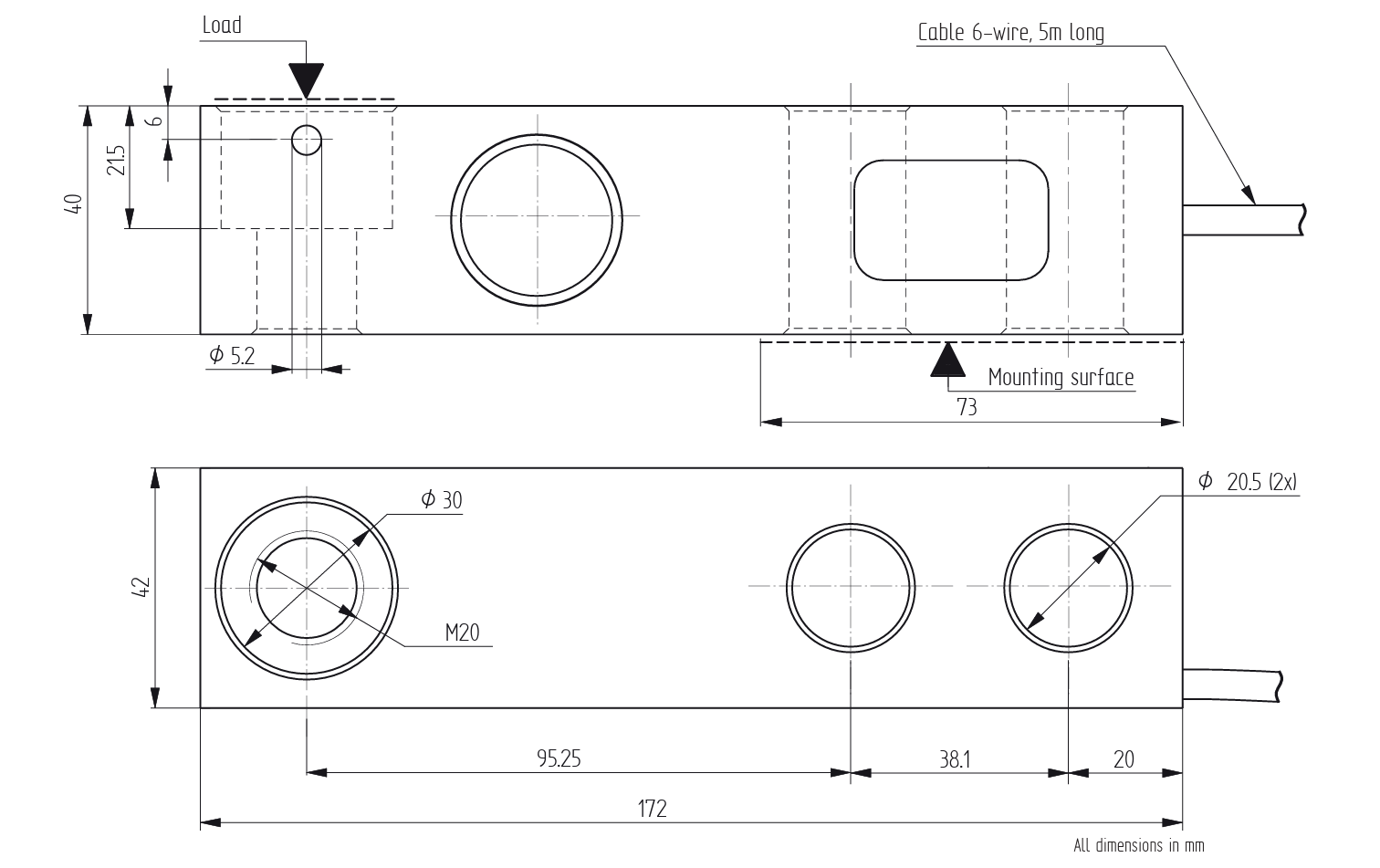

Dimensions in mm
Warning : Shear beam load cell SK30X installation requires mounting hardware with a minimum hardness of HRC 53 and screws of class 12.9
Connection Assignment
| Function | Wire Color |
|---|---|
| Excitation (+) | Brown |
| Signal (+) | Yellow |
| Signal (−) | White |
| Excitation (−) | Green |
| Sensing (+) | Gray |
| Sensing (−) | Pink |
Technical Data
| Item | Specification |
|---|---|
| Type | SK30X 5T |
| Version | C3 12e |
| Rated load E (kg) | 3000 / 5000 |
| Maximum load for approved weighing Emax (kg) | 3000 / 5000 |
| Accuracy class | OIML R60 C3 |
| Max. number of load cell intervals (nmax) | 3000 d |
| Minimum verification interval (vmin) | E / 10000 |
| Creep division factor | Z = Emax / 2 × DR-3000 |
| Combined error | ±0.017 % E |
| Temp. coefficient of zero | ±0.0014 % E / °C |
| Temp. coefficient of sensitivity | ±0.0014 % E / °C |
| Load creep (30 min) | ±0.024 % E |
| Zero balance | ±2.5 % E |
| Rated output (Cnom) | 2 mV/V |
| Excitation voltage (nom.) | 1 … 15 V |
| Input resistance | 385 ±20 Ω |
| Output resistance | 350 ±5 Ω |
| Insulation resistance | ≥5000 MΩ / 50V |
| Current adjustment | ±0.1 % E |
| Electrical connection | Cable, PVC, 5 m |
| Rated temperature range | −10 … +40 °C |
| Operating temperature range | −20 … +60 °C |
| Limit load | 150 % Emax |
| Breaking load | 200 % Emax |
| Tightening torque | 80 Nm |
| Protection class | IP68 (EN 60529) |
| Material | Stainless steel |
| Weight | 1.87 kg |
Options
| Article-No. | Description |
|---|---|
| 107798 | ATEX 2014/34/EU, IECEx: ex II 1 G/D, Ex ia IIC T6 Ga, Ex ia IIIC T80 °C Da, IP6X, Ambient temperature: −20 °C < Ta < +60 °C (Gas zones 0/1/2, Dust zones 20/21/22) |
| 115049 | ATEX 2014/34/EU, IECEx: ex II 1 D, Ex ta IIIC T125 °C Da, IP6X, Ambient temperature: −20 °C < Ta < +60 °C (Dust zones 20/21/22) |
| 115048 | ATEX 2014/34/EU, IECEx: ex II 3 G, Ex nA IIC T6 Gc, Ambient temperature: −20 °C < Ta < +60 °C (Gas zone 2) |
