Loadstar Sensors iPedal Pro - Pedal Force Sensor

Loadstar Sensors iPedal Pro – Pedal Force Sensor

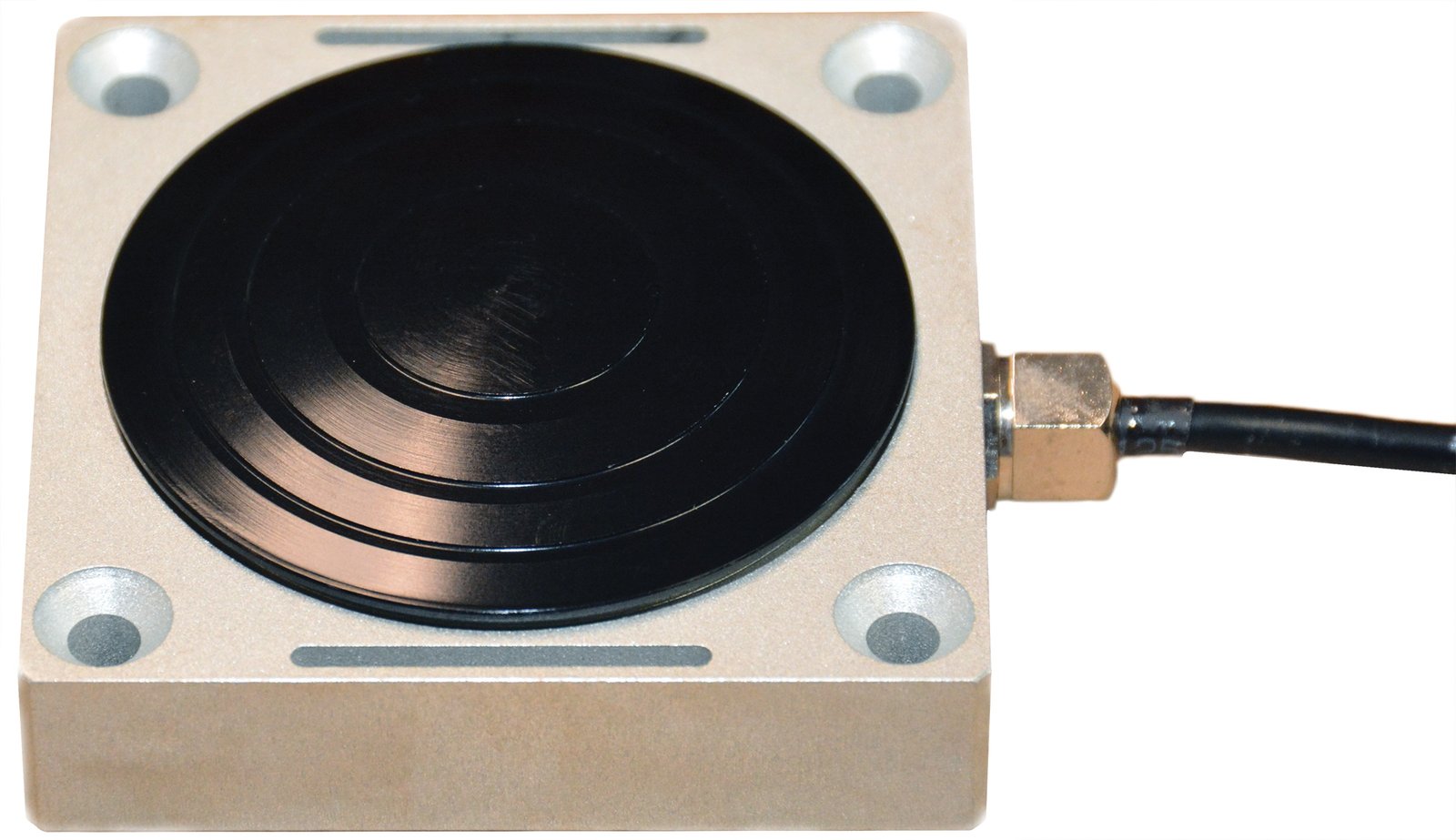

Loadstar’s iPedal Pro pedal force sensor, is an easy to use sensor for measuring compressive forces applied during brake testing or similar applications where a user wants to measure the forces applied on to a pedal by a foot or hand. The iPedal Pro replaces the iPedal sensor we used to offer until August 2018.

This versatile force sensor can be strapped onto to the pedal using the convenient slots (slits) provided on the sensor and used with our LoadVUE Pro (LV-1000) software to easily display, log and plot the force data on a PC or Windows compatible Tablet or with a DAQ/PLC using the analog output.

Category:
Tag:
브랜드:

설명

iPedal Pro – Pedal Force Sensor

Highlights


  • Low profile rectangular shape of sensor
  • Typically used for brake testing in automobiles
  • Also used for medical foot activated surgical tools
  • Standard mV/V output like other resistive load cells
  • Compatible with our resistive load cell interfaces



  • USB Output using DI-100U or DI-1000U @ about 60-80 Hz
  • USB Output @1kHz available using DI-1000UHS-1K
  • Wireless: DI-1000ZP (Xbee), DI-1000WiFi, DI-1000BLE
  • Analog 0.5 to 4.5 V DC output using AI-1000
  • LoadVUE Software is compatible with Win8/10
ipedalpro
