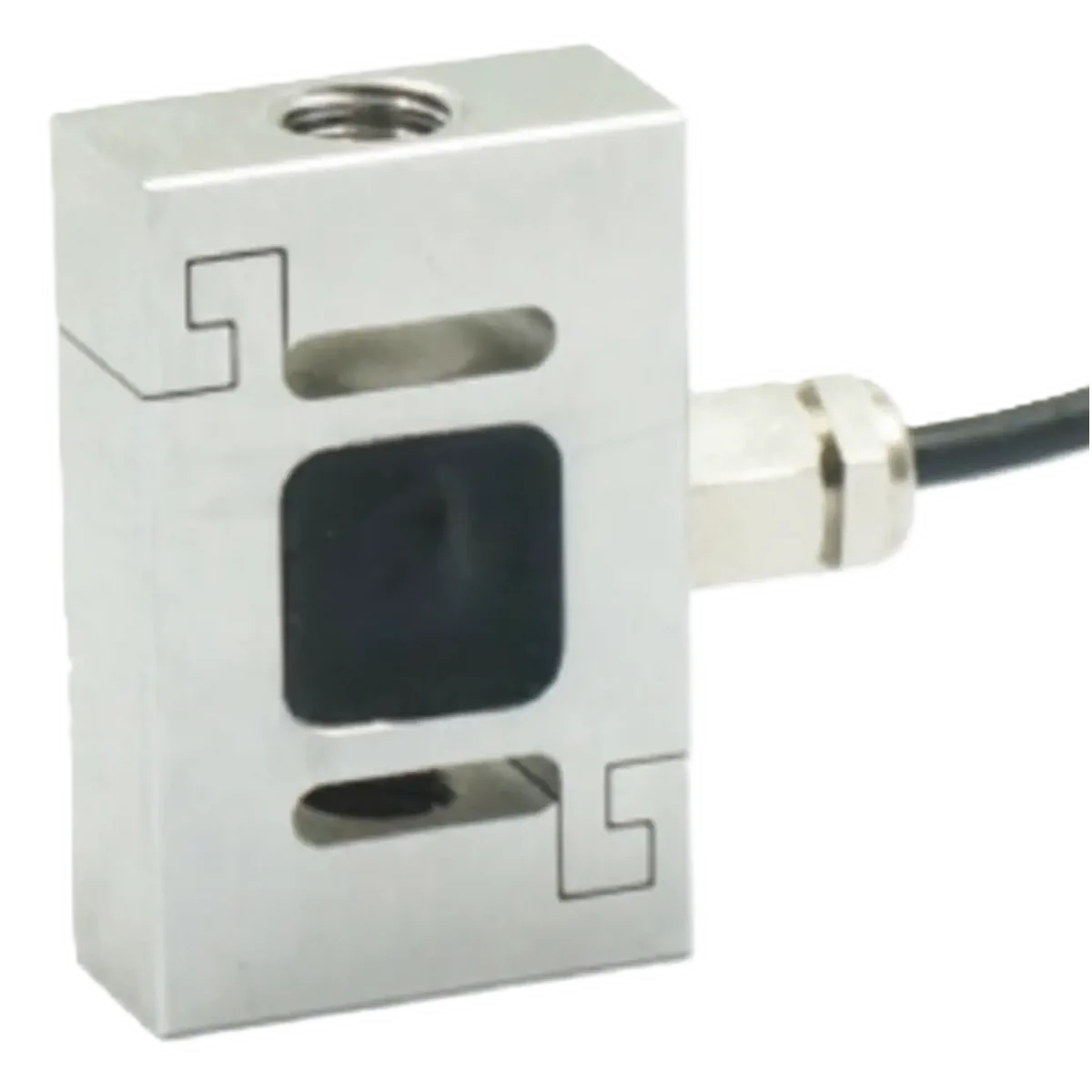

LSBB – High-Dynamic Load Cell

The LSBB is a compact load cell for tensile and compressive force measurements with high dynamic response. It is suitable for test benches, dynamic force measurements, machine monitoring, and industrial measurement systems.

The load cell is available in measuring ranges from 500 N to 2,000 N or 50 kg to 200 kg. The total error is a maximum of ±0.05% FS.

The housing is made of stainless steel 17-4PH / 1.4542 and is designed with protection class IP66 for industrial environments. The LSBB is suitable for dynamic measurements and is delivered factory-calibrated.

Advantages at a glance

• Load cell for tension and compression
• Measuring ranges from 500 N to 2,000 N
• Total error ≤ ±0.05% FS
• High dynamic response
• Stainless steel housing made of 17-4PH / 1.4542
• Protection class IP66
• Suitable for dynamic measurements
