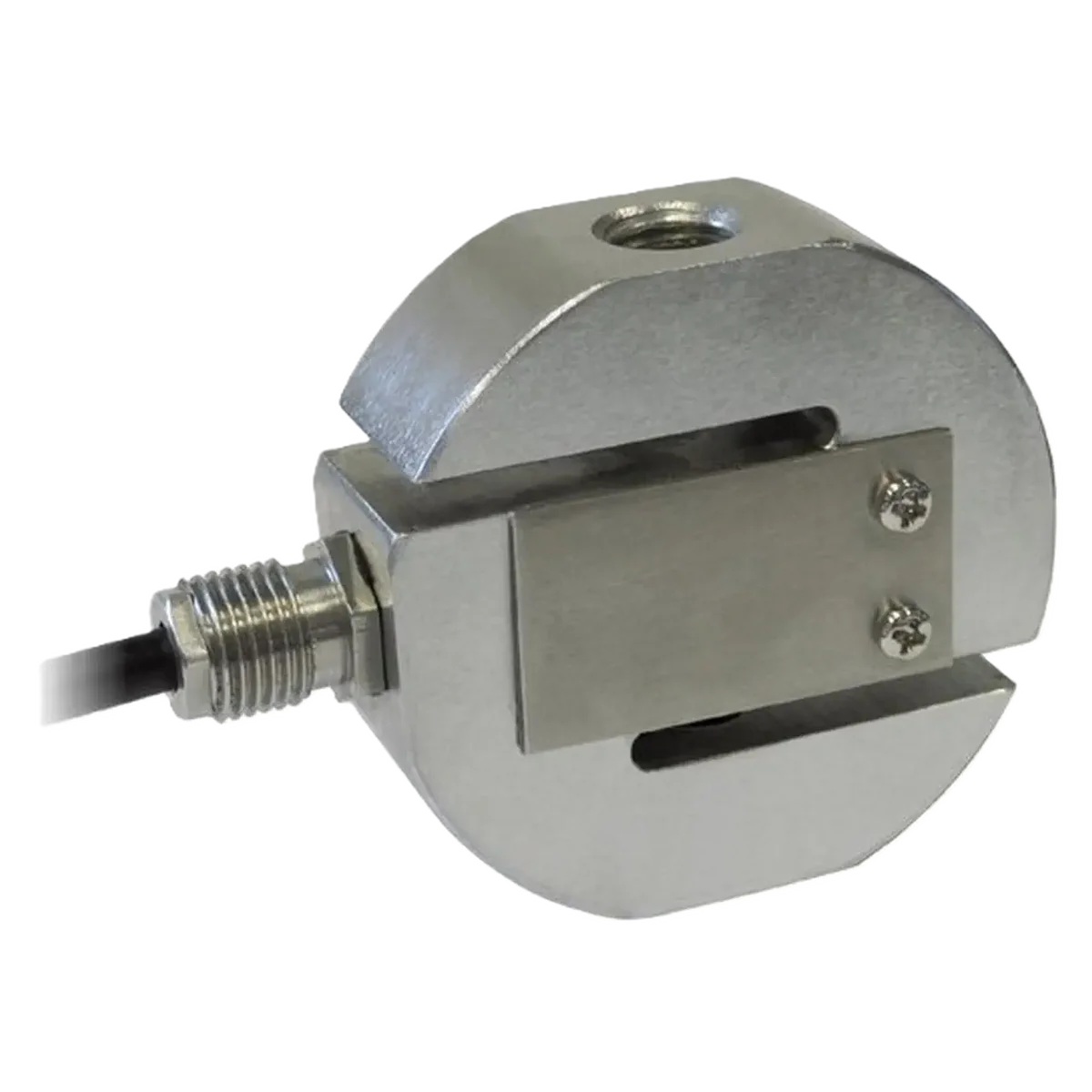

The LSLC is a robust tension and compression load cell for industrial force measurements. It is suitable for test benches, machine monitoring, weighing systems, and applications with bidirectional force application.

The load cell is available in measuring ranges from 0.5 kN to 50 kN or 50 kg to 5,000 kg. The total error is a maximum of ±0.03% FS.

The housing is made of AISI 420 stainless steel and is designed with protection class IP67 for industrial operating conditions. The LSLC is suitable for dynamic measurements and is optionally available with ISO 17025 calibration and Ex certifications.
