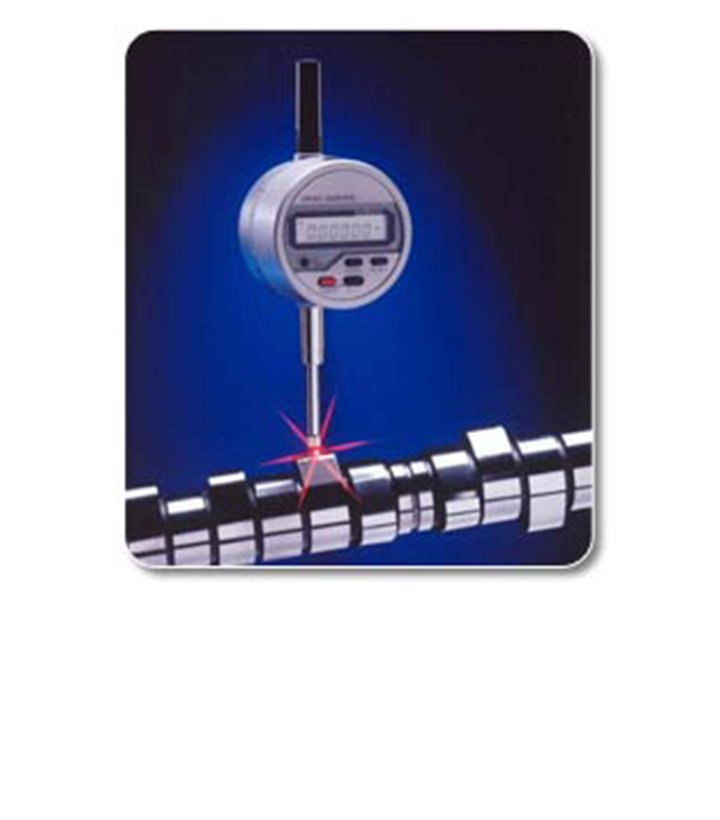

ONO SOKKI EG-225 Digital Linear Gauge with Lug back

ONO SOKKI EG-225 Digital Linear Gauge with Lug back

Metric high accuracy gauge. The EG-225 ( lug back ) and EG-225F ( flat back ) have exactly the same specs. The EG-225 is our most popular gage.

  • Preset capability
  • Zero / ABS function
  • Rechargeable battery / 120V AC adapter, other voltages you will need to supply your own converter.
  • AGD Group II dimensions
  • + / – Direction changeover
  • Output capability
  • Reverse display option available
  • Adjustable measuring force
  • Speedy Data transfer speed 1.6 ms
  • TIR ( Max. – Min. = Range )
  • OUR BEST SELLER ! Always quick delivery !
  • We private label this gage for major companies like Brown & Sharpe.
Category:
Tag:
브랜드:

설명

EG-225 Digital Linear Gauge with Lug back

Specifications

Range 1.0″ / 25.4 mm
Resolution 0.00005″ / 0.001 mm
Response Speed 20 in / s
Measuring Force 150 gf / 5.3 ozf (adjustable force, min. 25g)
Output Serial BCD, Optional RS-232C, USB, MTI and Analog outputs
Stem Diameter 3/8″ (.375″)
Contact Point Thread Size AGD 4 / 48
Operating temperature 41° to 104° F / 5° to 40° C
Power Supply AC Adapter (120V) Built-in 8-hour rechargeable battery
Dimension L-4.4″ W-2.0″ TH-1.5″
Weight 6.3 oz / 180 g
