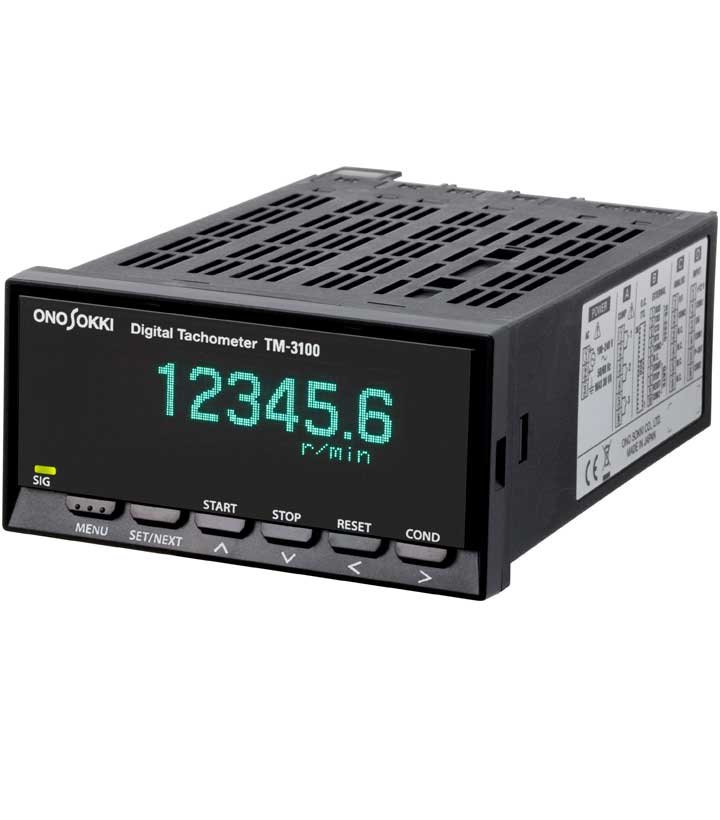

ONO SOKKI TM-3100 tachometers Digital Tachometers

ONO SOKKI TM-3100 tachometers Digital Tachometers

Introducing our new tachometer with a clear display and ability to add functions separately and easily. The fluorescent display tube of TM-3100 series greatly improves stability and readability instead of using LED as old models.

  • Flexible tachometer allows you to customize by adding cards  (must be installed by Ono Sokki)
  • Add and subtract functions that match your current application
  • Highly compatible with personal computers and controllers
  • TM-3110 “Basic model for measurement and display
  • TM-3120 “With BCD output of 6-digit display “Open collector output for direct connection with a PLC*. *Output can be optionally changed as TTL level
  • TM-3130 “With analog output (Output signal is selectable from voltage or current.)
  • TM-3140 “With comparator function Up to three combinations of upper/lower-limit determination can be setup.
  • TM-0301 Optional DC Power Module
  • Please Download Brochure for complete details !
  • RoHS Compliant
Category:
Tag:
브랜드:

설명

TM-3100 tachometers Digital Tachometers

 Specifications

Display Fluorescent tube (selectable of three stage brightness) 6-digit green
Display Update Selectable from 0.2s, 0.4s, 0.5s, 0.6s0.8s,1.0s to 10s (in 1.0s steps)
SIG Indicator Blinks synchronized with input signals
Error Display Backup memory error, board error, input frequency error, display digit error, memory full error, step error.
Units r/s, r/min, r/h, mm/s, m/s, mm/min, km/min, mm/h, m/h, Hz, kHz, ml/s, ml/min, ml/h, l/s
Power Supply for Detectors Output voltage : 12VDC (± 10%), Max. current : 100mA
Power Supply 100 to 240VAC, 50/60 Hz
Operating temperature 0 to +50°C / 32 to 122° F
Outer Dimensions 96(W) x 48(H) x 148(D) mm
Weight approx. 310g
Description Replacement for TM-2100 Series Tachometers
