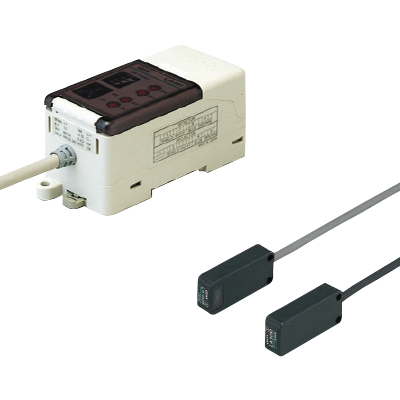

LED Collimated Beam Sensor LA-300

Features

Safe red LED beam

Since a red LED, harmless to the eyes, has been incorporated as the beam source, you are free from strict laser safety regulations.
Moreover, due to the red LED beam source, the measuring spot is visible, which makes positioning of the object simple.

Compact size

Its emitter and receiver are much smaller compared to those of the amplifier built-in type (LA-510). Hence, they can be installed even in a narrow space inside an automatic assembly machine, etc.

Slim type / LA-305

– Emitter:
W18 x H40 x D10 mm
W0.709 x H1.575 x D0.394 in
– Receiver:
W18 x H40 x D10 mm
W0.709 x H1.575 x D0.394 in

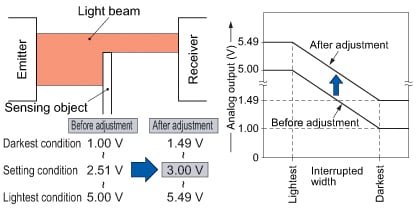

Span & shift adjustment

For the analog output, in addition to the span adjustment function, a convenient shift function which enables the analog voltage to be shifted by ±0.5 V has been incorporated.

Example:
To shift the analog voltage from 2.51 V to 3.00 V with a certain amount of beam interruption

Simple beam alignment

Beam alignment is easy by using the target label (accessory). Further, the 3-stage stability indicators on the amplifier indicate the incident beam level at a glance.
