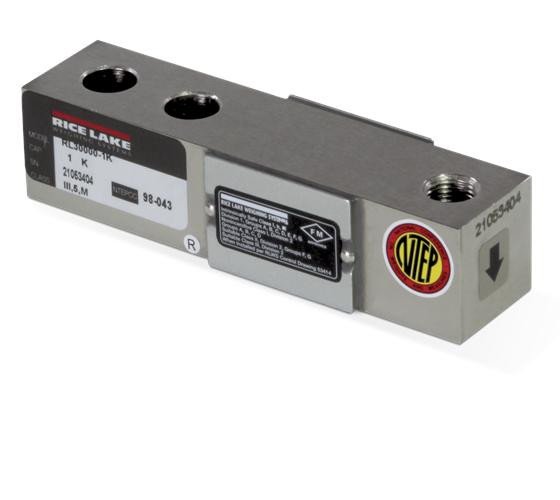

Rice Lake RL30000-2K 2000 lb Single Ended Beam Load Cell, NTEP
Rice Lake RL30000 single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications. The RL30000 load cell has a threaded hole, 20 ft load cell cable, and is constructed of nickel plated alloy steel. NTEP approved models are from 1000 lb to 10,000 lb capacities. Non-NTEP models have capacities of 250 lb, 500 lb, and 20,000 lb.
RL30000 load cells are used in some of the following Rice Lake Weighing module kits: RL1800 and RL50210 TA Series
Features
- 2000 lb capacity rating
- High alloy steel construction, nickel plated
- IP 67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- 2 year limited manufacturer’s warranty
- NTEP Approved
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
| 항목 | 내용 |
|---|---|
| Manufacturer | Rice Lake Weighing Systems |
| Model | RL30000-2K |
| Part Number | 21493 |
| Certification | NTEP Certified 1:5,000 III |
| Other Approvals | cFM, CE |
| Capacity Rating | 2000 lb / 907.2 kg |
| Safe Overload | 150% capacity |
| Safe Side Load | 100% capacity |
| Length | 5.12″ |
| Width | 1.25″ |
| Height | 1.25″ |
| Hole Threading | 1/2-20 UNF-2B |
| Construction / Finish | High-alloy steel, nickel plated |
| Cable Color Code | Red = + Excitation, Black = – Excitation, Green = + Signal, White = – Signal |
| Rated Excitation | 5-10 VDC (maximum of 15 V) |
| Full Scale Output | 3.0 mV/V |
| Bridge Resistance | 350 ohms nominal |
| Insulation Resistance | 5000 megohms |
| Compensated Temperature Range | 14°F to 104°F / -10°C to 40°C |
| Operating Temperature Range | -40°F to 150°F / -40°C to 65°C |
| Seal Type | IP67 Environmentally Sealed |
| Nonlinearity | 0.03% full scale |
| Hysteresis | 0.02% full scale |
| Deflection at Capacity | 0.015″ |
| Cable Length | 20 ft |
| Cable Diameter | 0.200 polyurethane jacket |
| Interchangeable Products | VPG Revere 5123, VPG TEDEA-HUNTLEIGH 3411, Artech 30310 |
