FEATURES
- Designed for Metrology Lab Use
- Meets ASTM E74 Class A to 2% of Range, Class AA to 10% of Range (When Calibrated with Primary Standards)
- Lowest Creep
- Lowest Reproducibility Errors
- Includes ASTM E74 Transfer Standard Tension & Compression Calibration
- Temperature Compensated
- Proprietary Modulus Compensated Strain Gages
- Low Sensitivity to Rotation Error
|
SPECIFICATIONS |
||||||
|
Model Capacity U.S. lbf. |
CS10 300, 500, b 1K, 2K |
CS10 5K, 10K |
CS20 25K, 50K |
CS22 60K |
CS30 100K |
|
|
PARAMETERS Metric kN |
1.5, 2.5, 5, 10 |
25, 50 |
100, 250 |
270 |
300, 500 |
|
|
ACCURACY |
|
|
|
|
|
|
|
Lower Load Limit, % Rated Output |
2.000 |
2.000 |
2.000 |
2.000 |
2.000 |
|
|
Static Error Band, % Rated Output |
+/- 0.020 |
+/- 0.025 |
+/- 0.025 |
+/- 0.030 |
+/- 0.040 |
|
|
Nonlinearity, % Rated Output |
+/- 0.020 |
|
+/- 0.030 |
+/- 0.030 |
+/- 0.030 |
+/- 0.045 |
|
Hysteresis, % Rated Output |
+/- 0.020 |
+/- 0.040 |
+/- 0.045 |
+/- 0.040 |
+/- 0.045 |
|
|
Nonrepeatability, % Rated Output |
+/- 0.005 |
+/- 0.005 |
+/- 0.005 |
+/- 0.005 |
+/- 0.005 |
|
|
Creep, % in 20 minutes |
+/- 0.010 |
+/- 0.010 |
+/- 0.010 |
+/- 0.010 |
+/- 0.010 |
|
|
Off-Center Load Sensitivity, % / inch |
+/- 0.050 |
+/- 0.050 |
+/- 0.050 |
+/- 0.050 |
+/- 0.050 |
|
|
Side Load Sensitivity, % |
+/- 0.050 |
|
+/- 0.050 |
+/- 0.050 |
+/- 0.050 |
+/- 0.050 |
|
Zero Balance, % Rated Output |
+/- 1.0 |
+/- 1.0 |
+/- 1.0 |
+/- 1.0 |
+/- 1.0 |
|
|
TEMPERATURE |
|
|
|
|
|
|
|
Range, Compensated, °F |
+15 to +115 |
+15 to +115 |
+15 to +115 |
+15 to +115 |
+15 to +115 |
|
|
Range, Compensated, °C |
-10 to +45 |
-10 to +45 |
-10 to +45 |
-10 to +45 |
-10 to +45 |
|
|
Range, Operating, °F |
-65 to +200 |
-65 to +200 |
-65 to +200 |
-65 to +200 |
-65 to +200 |
|
|
Range, Operating, °C |
-55 to +90 |
-55 to +90 |
-55 to +90 |
-55 to +90 |
-55 to +90 |
|
|
Effect on Sensitivity, % Rdg / °F |
+/- 0.0008 |
+/- 0.0008 |
+/- 0.0008 |
+/- 0.0008 |
+/- 0.0008 |
|
|
Effect on Sensitivity, % Rdg / °C |
+/- 0.0015 |
+/- 0.0015 |
+/- 0.0015 |
+/- 0.0015 |
+/- 0.0015 |
|
|
Effect on Zero, % Rated Output / ° F |
+/- 0.0008 |
+/- 0.0008 |
+/- 0.0008 |
+/- 0.0008 |
+/- 0.0008 |
|
|
Effect on Zero, % Rated Output / ° C |
+/- 0.0015 |
+/- 0.0015 |
+/- 0.0015 |
+/- 0.0015 |
+/- 0.0015 |
|
|
ELECTRICAL |
|
|
|
|
|
|
|
Rated Output, mV/V, Nominal |
2 |
4 |
4 |
4 |
4 |
|
|
Excitation Voltage, VDC Maximum |
20 |
20 |
20 |
20 |
20 |
|
|
Input Resistance, Ohms |
350 +40 / -3.5 |
350 +40 / -3.5 |
350 +40 / -3.5 |
350 +40 / -3.5 |
350 +40 / -3.5 |
|
|
Output Resistance, Ohms |
350 +/- 3.5 |
350 +/- 3.5 |
350 +/- 3.5 |
350 +/- 3.5 |
350 +/- 3.5 |
|
|
Insulation Resistance, Megohms |
5000 @ 50 VDC |
5000 @ 50 VDC |
5000 @ 50 VDC |
5000 @ 50 VDC |
5000 @ 50 VDC |
|
|
Bayonet Connector |
PT02E-10-6P (MS3112E-10-6P) |
|||||
|
MECHANICAL |
|
|
|
|
|
|
|
Safe Overload Range, % Rated Capacity |
+/- 150 |
+/- 150 |
+/- 150 |
+/- 150 |
+/- 150 |
|
|
Weight, lb |
2.8 |
6.9 |
23.6 |
29.6 |
57.8 |
|
|
Weight, kg |
1.3 |
3.1 |
10.8 |
13.4 |
26.2 |
|
|
Flexure Material |
Aluminum |
Steel |
Steel |
Steel |
Steel |
|
|

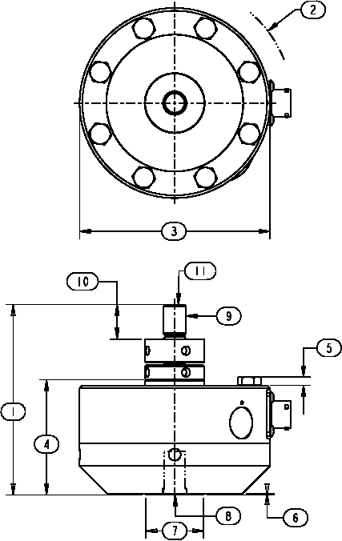

DIMENSIONS |
||||||||||
|
Model |
CS10 |
CS10M |
CS10 |
CS10M |
CS20 |
CS20M |
CS22 |
CS22M |
CS30 |
CS30M |
|
Capacity |
300, 500 1K, 2K lbf |
1.5, 2.5, 5, 10 kN |
5K, 10K lbf |
25, 50 kN |
25K, 50K lbf |
100, 250 kN |
60K lbf |
270 kN |
100K lbf |
300, 500 kN |
|
Dimensions |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
|
1. |
4.13 |
104.9 |
4.13 |
106.7 |
6.32 |
160.5 |
7.68 |
195 |
7.85 |
199.4 |
|
2. |
R 2.53 |
R 64.3 |
R 2.53 |
R 64.3 |
R 3.50 |
R 88.9 |
R 3.50 |
R 88.9 |
R 4.50 |
R 114.3 |
|
3. |
4.12 |
104.8 |
4.12 |
104.8 |
6.06 |
154.0 |
6.06 |
154.0 |
8.00 |
203.2 |
|
4. |
2.50 |
63.5 |
2.50 |
63.5 |
3.50 |
88.9 |
4.50 |
114.3 |
4.50 |
114.3 |
|
5. |
0.19 |
4.7 |
0.19 |
4.7 |
0.30 |
7.5 |
0.31 |
7.9 |
0.40 |
10.2 |
|
6. |
0.03 |
0.8 |
0.03 |
0.8 |
0.03 |
0.8 |
0.03 |
0.8 |
0.03 |
0.8 |
|
7. |
1.25 |
31.8 |
1.25 |
31.8 |
2.25 |
57.2 |
3.00 |
76.2 |
3.00 |
76.2 |
|
8. |
1/2 – 20 0.88 Deep |
M12 x 1.25 22.4 Deep |
5/8 – 18 0.88 Deep |
M16 x 2 22.4 Deep |
1 1/4 – 12 1.50 Deep |
M33 x 2 38.1 Deep |
1 1/2 – 12 2.0 Deep |
M36 x 2 30.8 Deep |
1 3/4 – 12 1.75 Deep |
M42 x 2 44.5 Deep |
|
9. |
1/2 – 20 |
M12 x 1.25 |
5/8 – 18 |
M16 x 2 |
1 1/4 – 12 |
M33 x 2 |
1 1/2 – 12 |
M36 x 2 |
1 3/4 – 12 |
M42 x 2 |
|
10. |
0.75 |
19.0 |
0.75 |
19.0 |
1.50 |
38.1 |
1.50 |
38.1 |
1.75 |
44.5 |
|
11. |
R 4.00 |
R 101.6 |
R 4.00 |
R 101.6 |
R 6.00 |
R 152.4 |
R 6.00 |
R 152.4 |
R 12.00 |
R 304.8 |
OPTIONS
Additional bridges
Output adjustment to standard Compression overload protection Integral cable
Custom connectors Connector Protectors
ACCESSORIES
Mating connector Loading fixtures Interconnect cable Shunt calibration resistor Instrumentation
