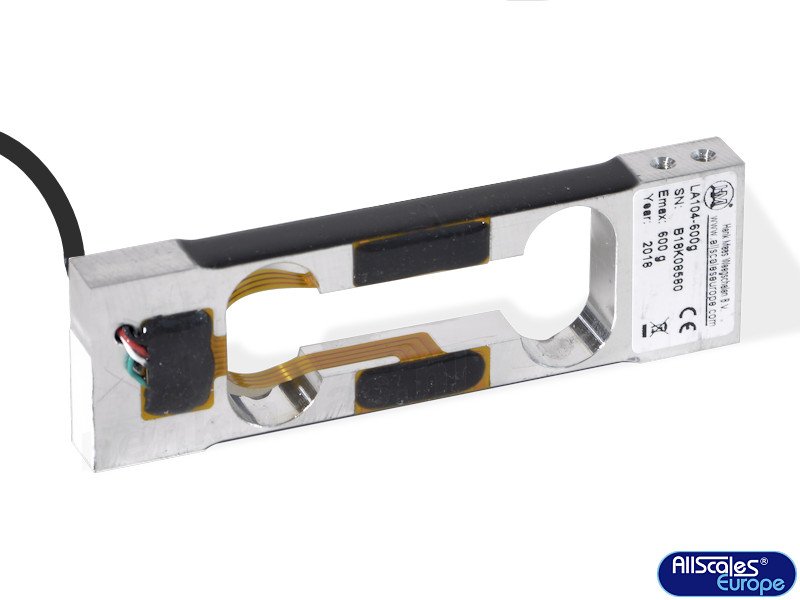

All scales europe Single Point Aluminum Load Cell LA104

All scales europe Single Point Aluminum Load Cell LA104

Model LA104 is available in capacities of 150 – 3000 g. It is a very accurate single point loadcell with very high precision, designed for direct assembly in precision weighing scales with low weighing capacity, such as gold and jewelery scales, analytical balances, medical weighing equipment, etc.

Category:
Tag:
브랜드:

설명

Single Point Aluminum Load Cell LA104

  • capacities from 150 to 3000 g
  • up to 100,000 divisions short term precision at room temperature
  • maximum platform size 200 x 200 mm at 3000 divisions
  • IP66 protection class
  • error better than 0.0048% of Rated Output available

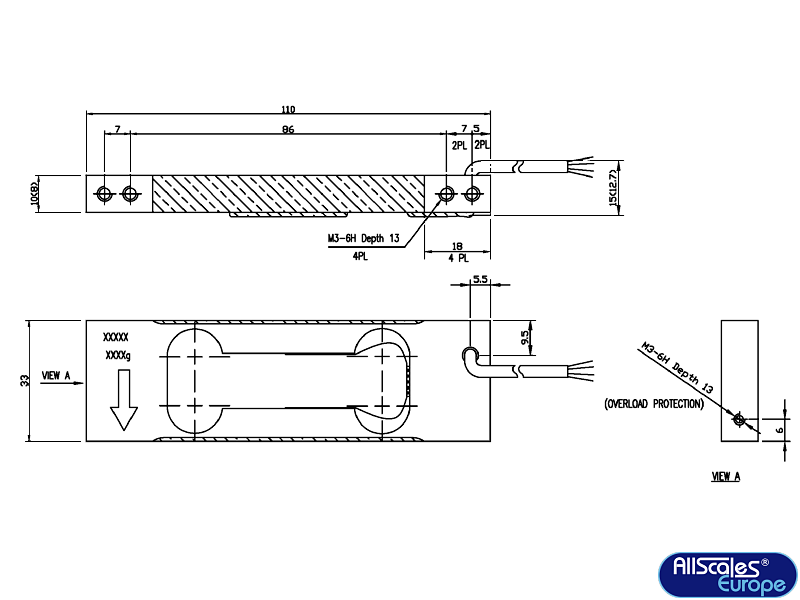

  • a 3 mm  threaded hole in the loading end of the load cell is provided for overload protection
  • can be used as a replacement for type 1004


Applications

Model LA104 is a very low capacity, very high precision single point load cell designed for direct mounting in low capacity scales and precision balances.

This load cell is ideal for applications including gold and jewelry scales, analytical balances, medical equipment, medical and pharmaceutical research and low level force measurement.



Specifications

PARAMETER UNIT VALUE
Rated capacity (Emax) g 150, 200, 300, 600, 1200, 1500, 3000
Sensitivity mV/V 0.90
Sensitivity tolerance ± mV/V 0.10
Zero balance ± mV/V 0.10
Y=Emax/vmin Typical 4000
Z=Emax/(2*DR) Typical 3000
Creep (From stable to 2min) ± % 0.0085
Temperature effect on output ± %/ C 0.0014
Hysteresis % 0.0080
Linearity deviation % 0.0120
Repeatability % 0.0090
Eccentric loading error ±%/cm 0.0042
Maximum platform size mm 200 x 200
Nominal temperature range °C -10 to +40
Service temperature range °C -30 to +70
Limit load % of R.C. 200
Break load % of R.C. 300
Nominal Humidity Range %RH 20 to 65
Nominal excitation V 5
Max. excitation V 15
Input impedance Ohm 410 ± 15
Output impedance Ohm 350 ± 3
Insulation resistance MOhm >2000
Cable length Meter 0.35
Cable type   4 conductors, 28 AWG, Aluminum foil Shielded, Black PVC Jacket
Color code



Thick Yellow Shield
Green Excitation +
Black Excitation –
Red Signal +
White Signal –
Construction   Aluminum Alloy
Compensation circuit type   Balanced Bridge
Protection class to IEC529   IP 66
