All scales europe Single Point Load Cell LA114

All scales europe Single Point Load Cell LA114

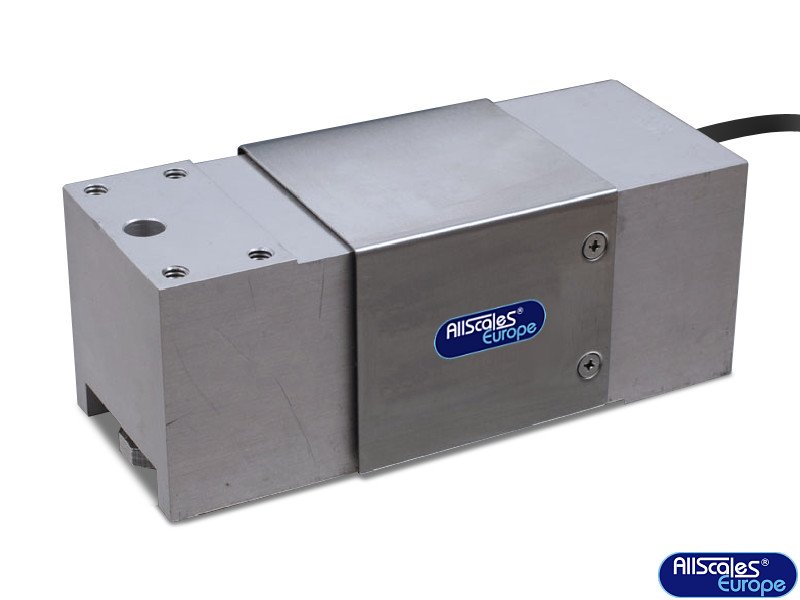

Model LA114 is a single point three beam load cell designed for direct mounting of large platforms. Typical applications include check weighing scales, floor scales, counting scales, etc.

A special humidity-resistant protective coating assures long-term stability over the entire compensated temperature range.

The two additional sense wires, sample the bridge supply voltage at the load cell. Complete compensation of change in the lead wires resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.

Category:
Tag:
브랜드:

설명

Single Point Load Cell LA114

Single Point Load Cell LA114

  • capacities from 50 to 500 kg
  • high accuracy load cell
  • maximum platform size 800 x 800 mm at 3000 divisions
  • IP65 protection class
  • anodized aluminum construction
  • equipped with special humidity-resistant protective coating
  • TH1250 applicable

Technical Specifications

PARAMETER UNIT VALUE
Rated capacity (Emax) kg 50, 75, 100 , 150, 200,  250, 300, 500
Sensitivity mV/V 2.0
Sensitivity tolerance ± mV/V 0.20
Zero balance ± mV/V 0.10
Y=Emax/vmin Minimum 10000
Z=Emax/(2*DR) Minimum 3000
Eccentric loading error ±%/cm 0.0033
Maximum platform size mm 800 x 800
Nominal temperature range °C -10 to +40
Service temperature range °C -30 to +70
Limit load % of R.C. 150
Break load % of R.C. 300
Nominal excitation V 10
Max. excitation V 15
Input impedance Ohm 405 ± 15
Output impedance Ohm 350 ± 3
Insulation resistance MOhm >2000
Cable length Meter 3.0
Cable type   6 x26 AWG, Black PVC Jacket
Color code
Green + Input
Blue + Sense
Red + Output
Black – Input
Brown – Sense
White – Output
  Shield
Construction   Anodized aluminum
Protection class   IP 66
LA114-single-point-load-cell
