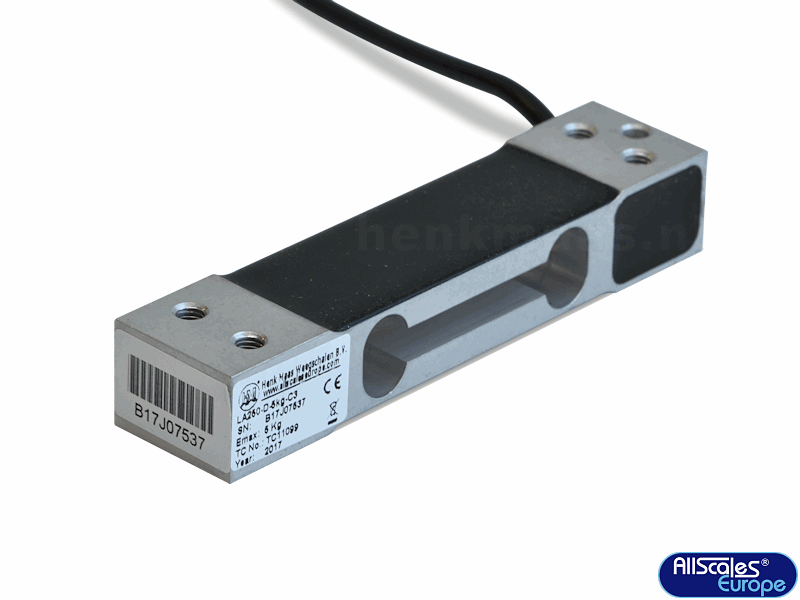

All scales europe Single Point Load Cell LA250-D

All scales europe Single Point Load Cell LA250-D

Single point loadcell LA250-D, version anodised aluminium, protection class IP 66, accuracy class C3. For weighing platforms up to 350 x 350 mm.

Model LA250-D is a low profile single point load cell, designed for direct mounting in weighing platforms.

Category:
Tag:
브랜드:

설명

Single Point load Cell LA250-D

  • capacities CE-verifiable: 5, 10, 15, 20, 50, 100 kg
  • version anodised aluminium
  • protection class IP 66
  • accuracy class C3
  • for weighing platforms up to 350 x 350 mm
  • can be used as a replacement for type 1022
  • see leaflet for further information

TECHNICAL DATA

PARAMETER UNIT VALUE
OIML Accuracy   C3
Rated capacity (Emax) kg  5, 10, 15, 20, 50, 100
Sensitivity mV/V 2.00
Sensitivity tolerance ± mV/V 0.20
Zero balance ± mV/V 0.10
Maximum Number of Intervals   3000
Y=Emax/vmin Minimum 10000
Z=Emax/(2*DR) Minimum 3000
Eccentric loading error ±%/cm 0.0042
Maximum platform size cm 35×35
Nominal temperature range °C -10 to +40
Service temperature range °C -30 to +70
Limit load % of R.C. >150
Break load % of R.C. >300
Nominal excitation V 10
Max. excitation V 15
Input impedance Ohm 406 ± 15
Output impedance Ohm 350 ± 3
Insulation resistance MOhm >2000
Compensation circuit type   Balanced Bridge
Cable length Meter 3
Cable type   6 x 26AWG, Black PVC Jacket
Color code



Yellow Shield
Green Excitation +
Black Excitation –
Red Signal +
White Signal –
Blue Sense +
Brown Sense –
Construction   Aluminum Alloy
Protection class to IEC529   IP 66
LA250-D-single-point-load-cell
