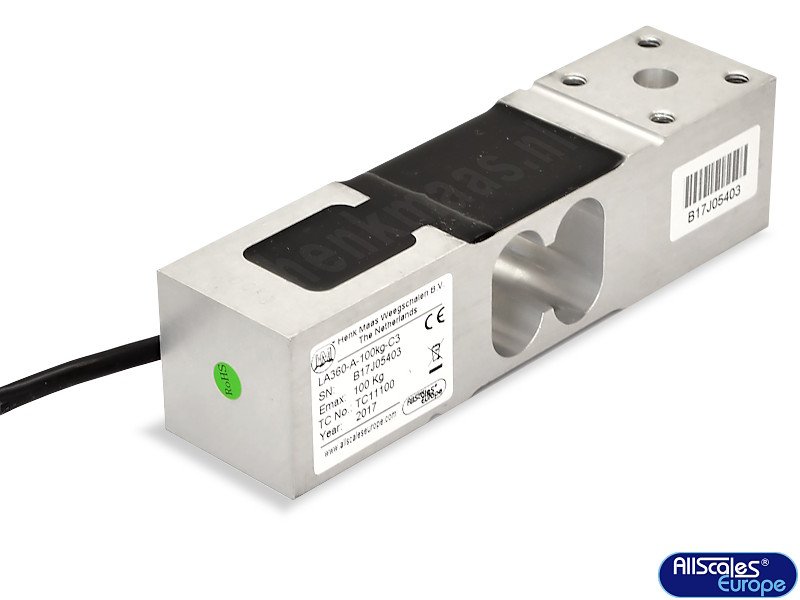

All scales europe Single Point Load Cell LA360-A

All scales europe Single Point Load Cell LA360-A

Version anodised aluminium, protection class IP 66, accuracy class C3. For weighing platforms up to 400 x 400 mm and capacities from 50 up to and included 200 kg, CE-verifiable.

Model LA360-A is a low profile, high performance single point load cell designed for industrial applications where space is limited. Typical applications include platforms, hanging scales, and personal scales. The series is low priced and has a high accuracy.

Category:
Tag:
브랜드:

설명

Single Point Load Cell LA360-A

  • CE-verifiable capacities: 50, 100, 200 kg
  • version anodised aluminium
  • protection class IP 66
  • accuracy class C3
  • for weighing platforms up to 400 x 400 mm
  • can be used as a replacement for type 1242
  • see further leaflet

SPECIFICATION

PARAMETER UNIT VALUE
OIML Accuracy   C3
Rated capacity (Emax) kg  50, 100, 200
Sensitivity mV/V 2.00
Sensitivity tolerance ± mV/V 0.20
Zero balance ± mV/V 0.10
Maximum Number of Intervals   3000
Y=Emax/vmin Minimum 10000
Z=Emax/(2*DR) Minimum 3000
Eccentric loading error ±%/cm 0.0042
Maximum platform size cm 40×40
Nominal temperature range °C -10 to +40
Service temperature range °C -30 to +70
Limit load % of R.C. 150
Break load % of R.C. 300
Nominal excitation V 10
Max. excitation V 15
Input impedance Ohm 406 ± 15
Output impedance Ohm 350 ± 3
Insulation resistance MOhm >2000
Compensation circuit type   Balanced Bridge
Cable length Meter 3.0
Cable type   6×26 AWG
Color code



Yellow Shield
Green Excitation +
Black Excitation –
Red Signal +
White Signal –
Blue Sense +
Brown Sense –
Construction   Anodised Aluminum Alloy
Protection class to IEC529   IP 66
LA360-A-single-point-load-cell
