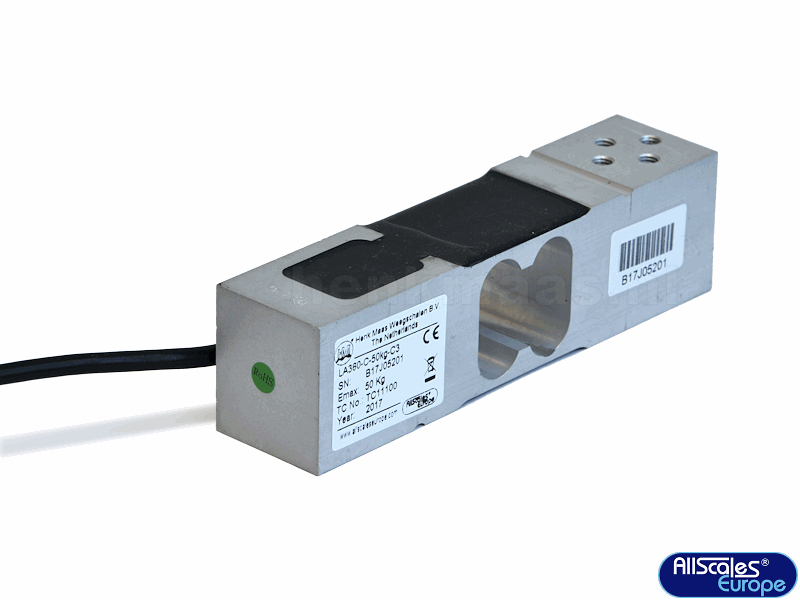

All scales europe Single Point Load Cell LA360-C

All scales europe Single Point Load Cell LA360-C

Version anodised aluminium, protection class IP 66, accuracy class C3. For weighing platforms up to 400 x 400 mm and capacities from 50 up to 300 kg, CE-verifiable.

Model LA360-C is a low profile, high performance single point load cell designed for industrial applications where space is limited. Typical applications include platforms, hanging scales, and personal scales.

Category:
Tag:
브랜드:

설명

Single Point Load Cell LA360-C

  • CE-verifiable capacities: 50, 100, 200, 300 kg
  • version anodised aluminium
  • protection class IP 66
  • accuracy class C3
  • for weighing platforms up to and included 400 x 400 mm
  • see further under the Product Information tab.

SPECIFICATION

PARAMETER UNIT VALUE
OIML Accuracy   C3
Rated capacity (Emax) kg  50, 75, 100, 200, 300
Sensitivity mV/V 2.00
Sensitivity tolerance ± mV/V 0.20
Zero balance ± mV/V 0.10
Maximum Number of Intervals   3000
Y=Emax/vmin Minimum 10000 (LA360-C-50, 100, 200, 300 kg)
15000 (LA360-C-Y-15000-75kg)
Z=Emax/(2*DR) Minimum 3000
Eccentric loading error ±%/cm 0.0042
Maximum platform size cm 40×40
Nominal temperature range °C -10 to +40
Service temperature range °C -30 to +70
Limit load % of R.C. 150
Break load % of R.C. 300
Nominal excitation V 10
Max. excitation V 15
Input impedance Ohm 406 ± 15
Output impedance Ohm 350 ± 3
Insulation resistance MOhm >2000
Compensation circuit type   Balanced Bridge
Cable length Meter 3.0
Cable type   6×26 AWG, Black PVC Jacket
Color code



Yellow Shield
Green Excitation +
Black Excitation –
Red Signal +
White Signal –
Blue Sense +
Brown Sense –
Construction   Anodised Aluminum Alloy
Protection class to IEC529   IP 66
LA360-C-single-point-load-cell
