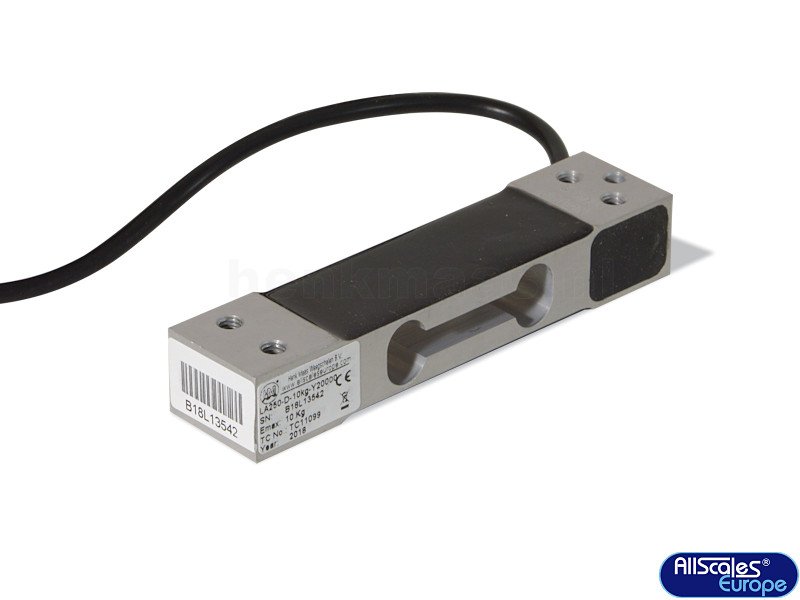

All scales europe Single point loadcell LA250-D-Y20000

All scales europe Single point loadcell LA250-D-Y20000

Relative Vmin (ratio to minimum LC verification interval): Y 20000. Version anodised aluminium, protection class IP 66, accuracy class C3. For weighing platforms up to 350 x 350 mm,

Category:
Tag:
브랜드:

설명

Single point loadcell LA250-D-Y20000

  • capacities CE-verifiable: 10, 20, 40 kg
  • Relative Vmin (ratio to minimum LC verification interval): Y 20000.
  • version anodised aluminium
  • protection class IP 66
  • accuracy class C3
  • for weighing platforms up to 350 x 350 mm
  • see leaflet for further information

TECHNICAL DATA

PARAMETER UNIT VALUE
OIML Accuracy   C3
Rated capacity (Emax) kg  10, 20, 40
Sensitivity mV/V 2.00
Sensitivity tolerance ± mV/V 0.20
Zero balance ± mV/V 0.10
Maximum Number of Intervals   3000
Y=Emax/vmin Minimum 20000
Z=Emax/(2*DR) Minimum 3000
Eccentric loading error ±%/cm 0.0042
Maximum platform size cm 35 x 35
Nominal temperature range °C -10 to +40
Service temperature range °C -30 to +70
Limit load % of R.C. >150
Break load % of R.C. >300
Nominal excitation V 10
Max. excitation V 15
Input impedance Ohm 406 ± 15
Output impedance Ohm 350 ± 3
Insulation resistance MOhm >2000
Compensation circuit type   Balanced Bridge
Cable length Meter 3
Cable type   6 x 26AWG, Black PVC Jacket
Color code



Yellow Shield
Green Excitation +
Black Excitation –
Red Signal +
White Signal –
Blue Sense +
Brown Sense –
Construction   Aluminum Alloy
Protection class to IEC529   IP 66
