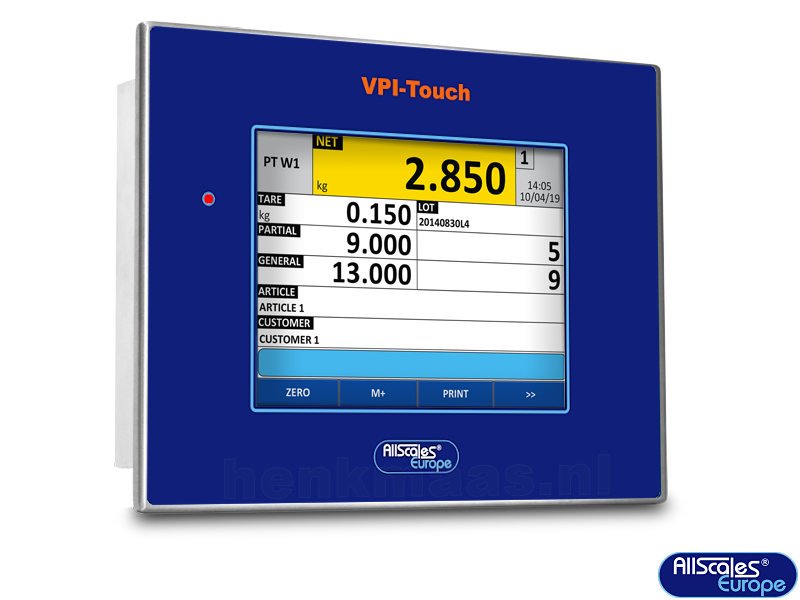

Weight indicator VPI-Touch

• CE-verifiable
• backlit graphic display with touch screen technology, l x h = 160 x 120 mm; suitable for use with gloves
• multilanguage software, available in Dutch, English, German, French, Italian and Spanish
• equipped with waterproof gasket
• stainless steel frontal panel, IP65 protection class, with 8 fixing points for maximum protection against water and dust
• stainless steel housing, IP65 protection class
• overall dimensions: 280 x 220 x 80 mm
• real time clock and permanent data storage
• fitted alibi memory, integrated on the motherboard
• functions available with PC-software utility, also from remote (web server mode via internet):
  • configuration, data entry and print formatting
  • recording and filing of all the information on PC
  • complete retrieval of the configuration
  • instrument calibration with numeric values
  • customization of the screens
  • development environment for customised programmes using a specific programming language
  • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points
• 4 independent analogue channels for reading of the weight
• connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market
• management of the most common digital load cells for weighbridges (with AF03GT firmware), also for CE-M approved applications
• up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade
• up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points
• connectable to printers and labellers with free programmation of the printout formats
• power supply: 12-24 Vdc

I / O-SECTION

• 1 internal Ethernet port as standard, to connect to the company network
• 1 RS232 serial port on RJ45 connector (if activated, it deactivates the Ethernet port) for connection to printer, PC, PLC, radio module and optional interfaces
• 1 RS232 serial port on screw terminals for connection to printer, PC, radio module and optional interfaces
• 1 RS232/RS485 serial port on screw terminals, for connection to weight repeater, remote scale, badge reader or digital load cells
• fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional)
• 4 optoisolated outputs, expandable up to 16 with optional board
• 2 optoisolated inputs, expandable up to 8 with optional board
• Modbus RTU Interface.
