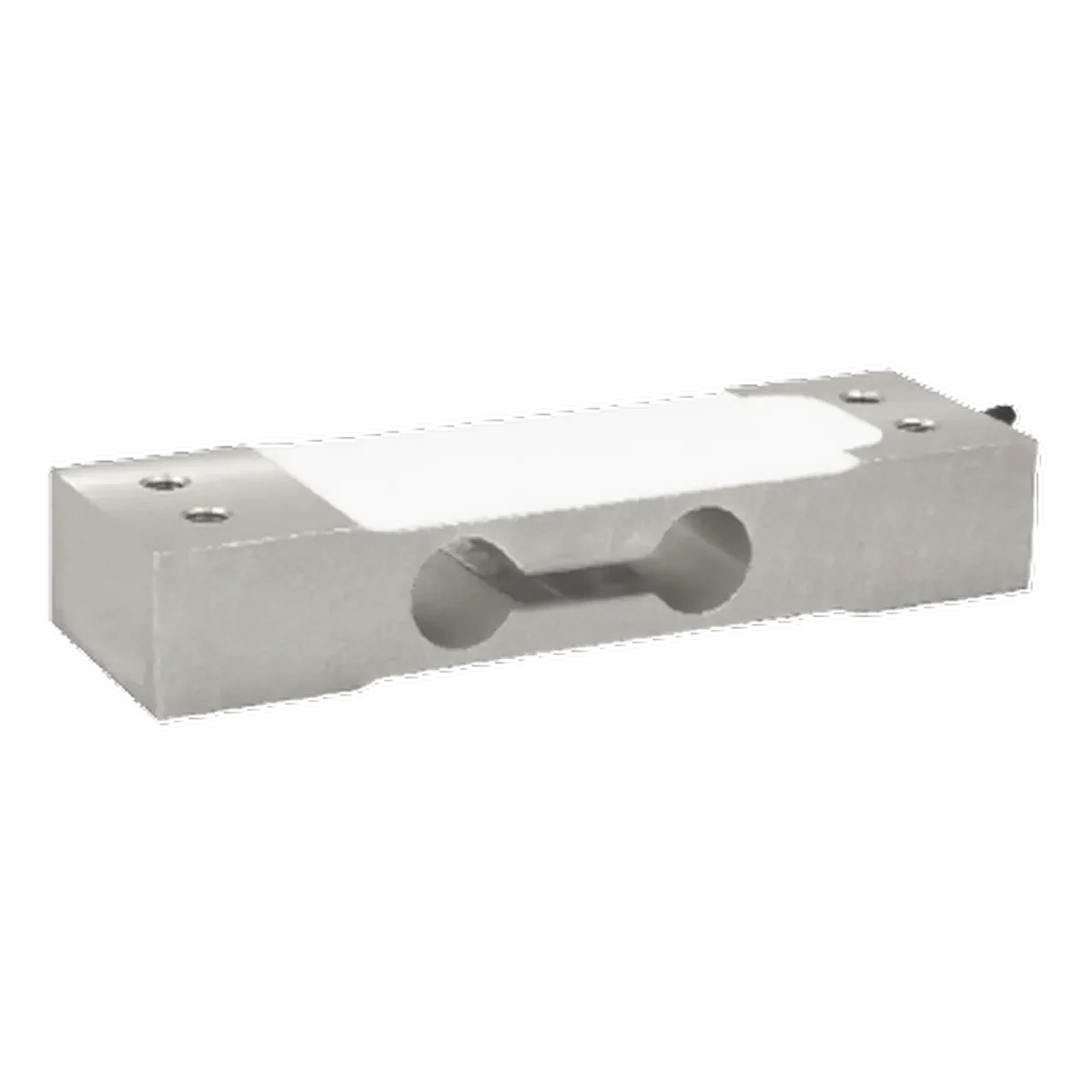

The LCBG is a flat platform load cell for precise force and weighing measurements in compact applications. It is suitable for tensile and compressive loads and can be used, for example, in platform scales, dosing systems, test benches, and industrial monitoring systems.

The load cell is available in measuring ranges from 35 kg to 200 kg or from 350 N to 2,000 N. With a total error of maximum ±0.021 % FS, it enables reliable measurement data acquisition. The full Wheatstone bridge in a 4-wire configuration supports easy integration into existing measurement systems.

The robust housing made of stainless steel 17-4PH / 1.4542 and the protection class IP66 allow its use even under demanding environmental conditions. The load cell is also suitable for dynamic measurements. A high-temperature version up to +250 °C and ISO-17025 calibration are optionally available.
