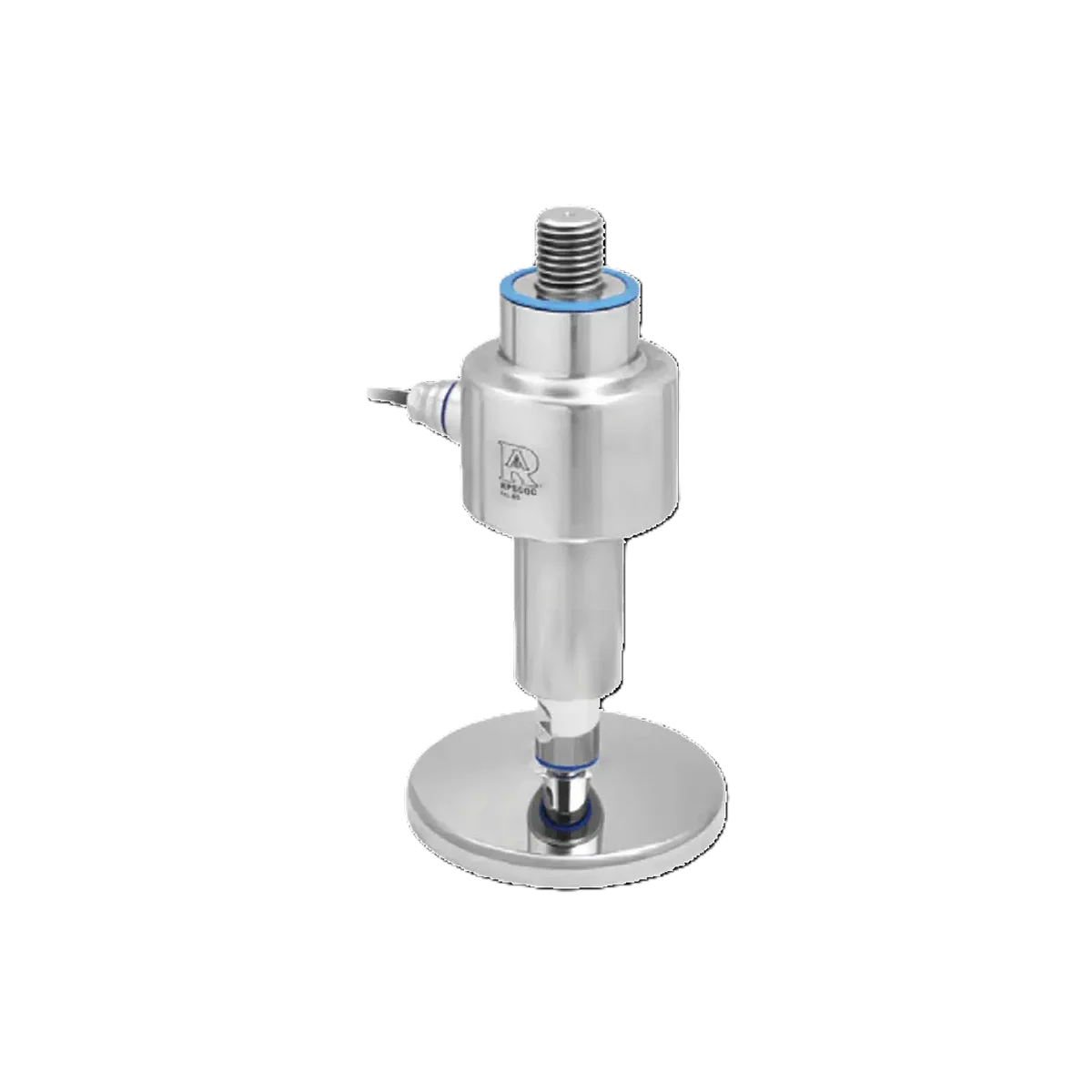

LTLB Tension Load Cell: Robust Stainless Steel Solution for Heavy Loads

The Octogon LTLB tension load cell is specifically designed for high-precision tensile force measurements in demanding industrial heavy-load applications. Completely made of durable stainless steel (AISI 420) and equipped with a high protection class of IP68, this sensor delivers consistently reliable results even under the harshest conditions and in humid environments.

The most important advantages at a glance:

• Massive measuring ranges: Available in nominal loads from 3,000 kg (30 kN) up to 25,000 kg (250 kN).

• Reliable precision: Low combined error of ≤ ±0.08% of nominal load.

• Highest mechanical safety: Designed for a safe overload of 150% of the nominal load and an extreme breaking load of over 300%.

• Ready for critical zones: Optionally available with IECEx and EACEx certifications for use in potentially explosive atmospheres.

• International standards: Fully CE, RoHS, REACH and EAC compliant as standard.

Technical overview:

• Material: Stainless steel (AISI 420)

• Measuring direction: Tension

• Rated Output: 2 mV/V ±1%

• Protection class: IP68 (according to IEC 60529)

• Operating temperature range: -20°C to +60°C
