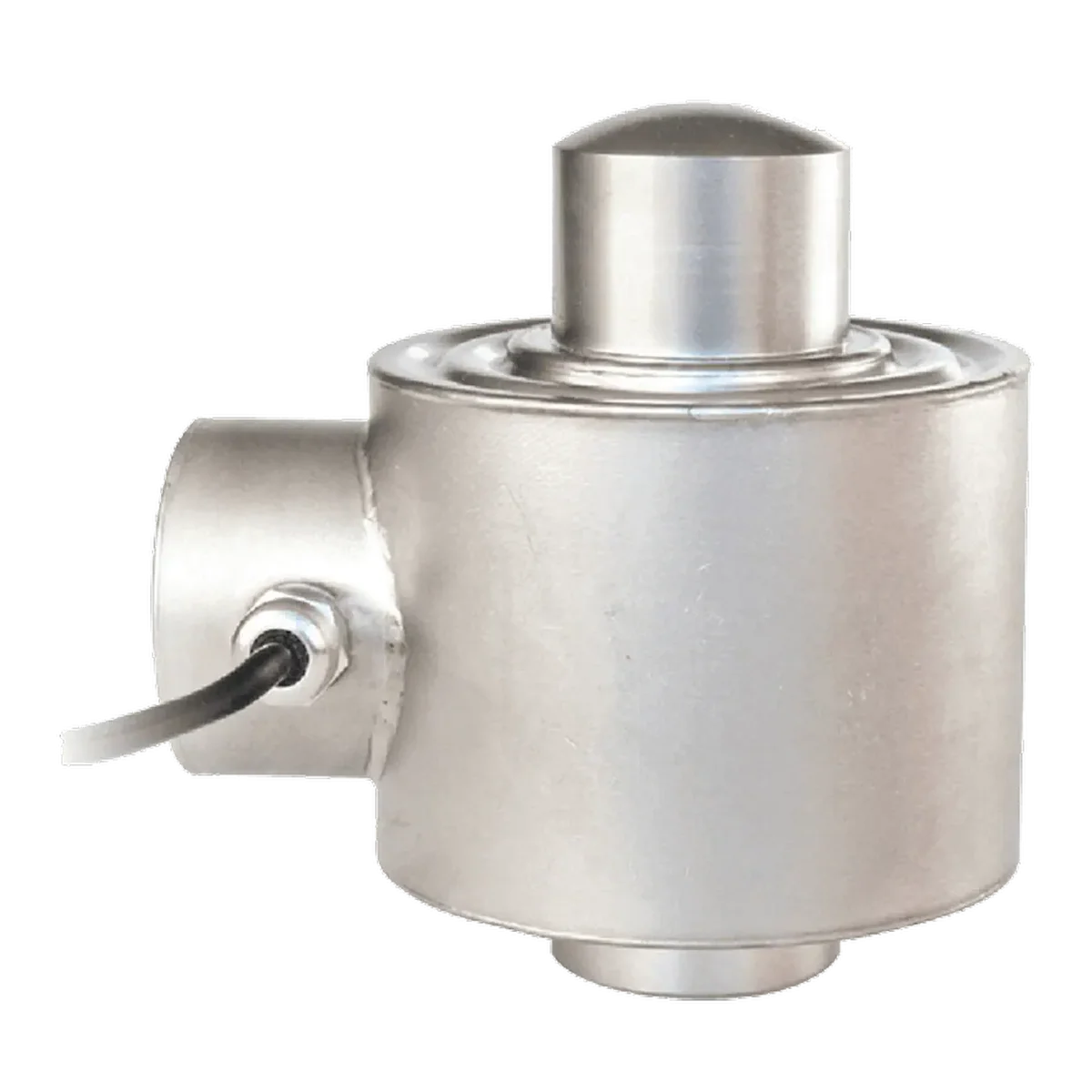

The LILA is a precise compression column load cell for industrial applications with high loads. It is suitable for silo scales, tank scales, test benches, and force monitoring systems.

The load cell is designed for a measuring range of 250 kN or 25,000 kg. It complies with accuracy class C4 and achieves a total error of a maximum of ±0.017 % FS.

The housing is made of AISI 420 stainless steel and is suitable for demanding environmental conditions with protection class IP68. ISO 17025 calibration and various certifications are optionally available.
