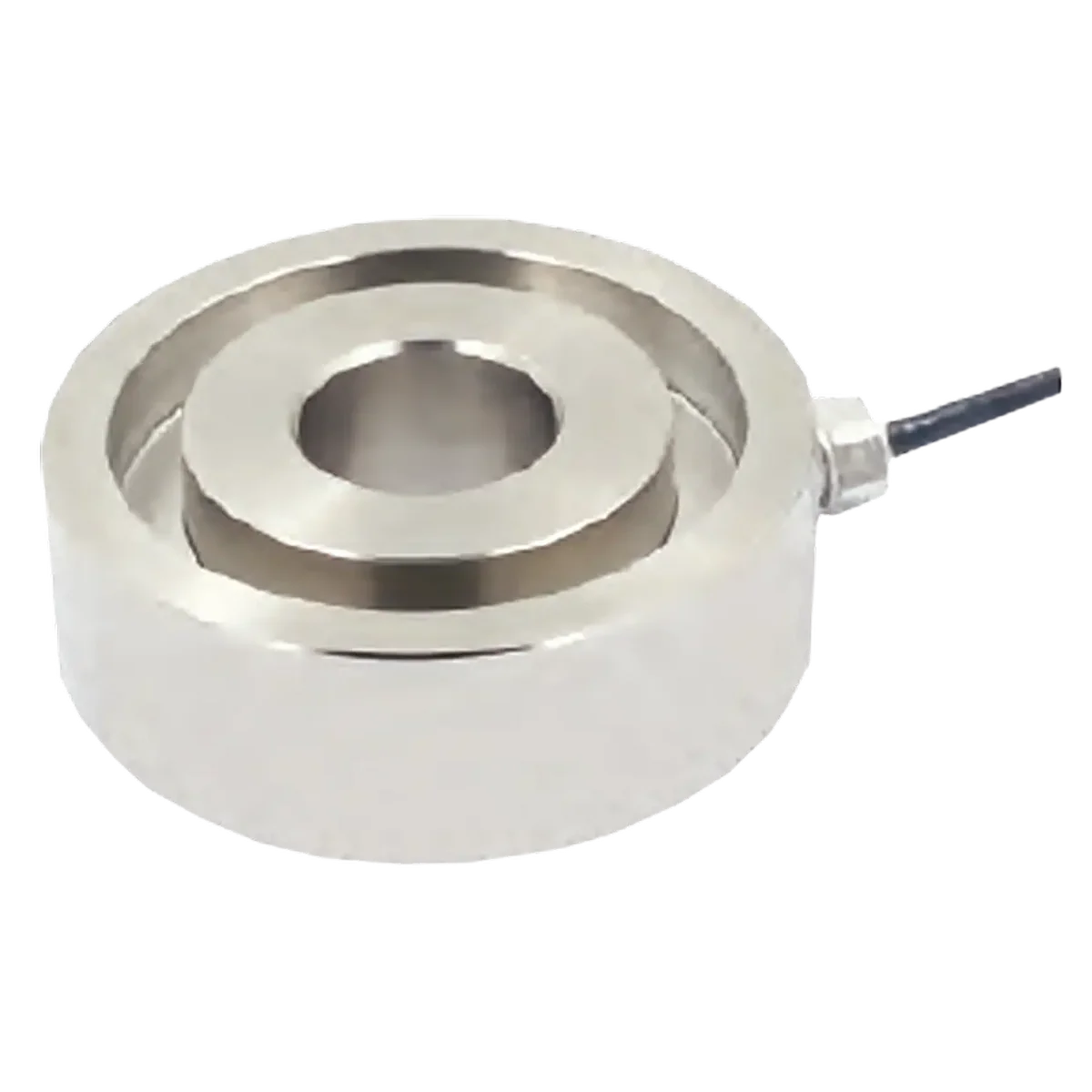

The LRBC is a customizable ring load cell for compressive force measurements in compact installation situations. It is particularly suitable for applications where the inner diameter needs to be adapted to the respective design.

The load cell is available in measuring ranges from 5 kN to 50 kN or 500 kg to 5,000 kg. The total error is a maximum of ±0.28 % FS.

The housing is made of 17-4PH / 1.4542 stainless steel and is suitable for industrial operating conditions with protection class IP67. The inner diameter is customizable. A high-temperature version up to +250 °C and ISO-17025 calibration are optionally available.
