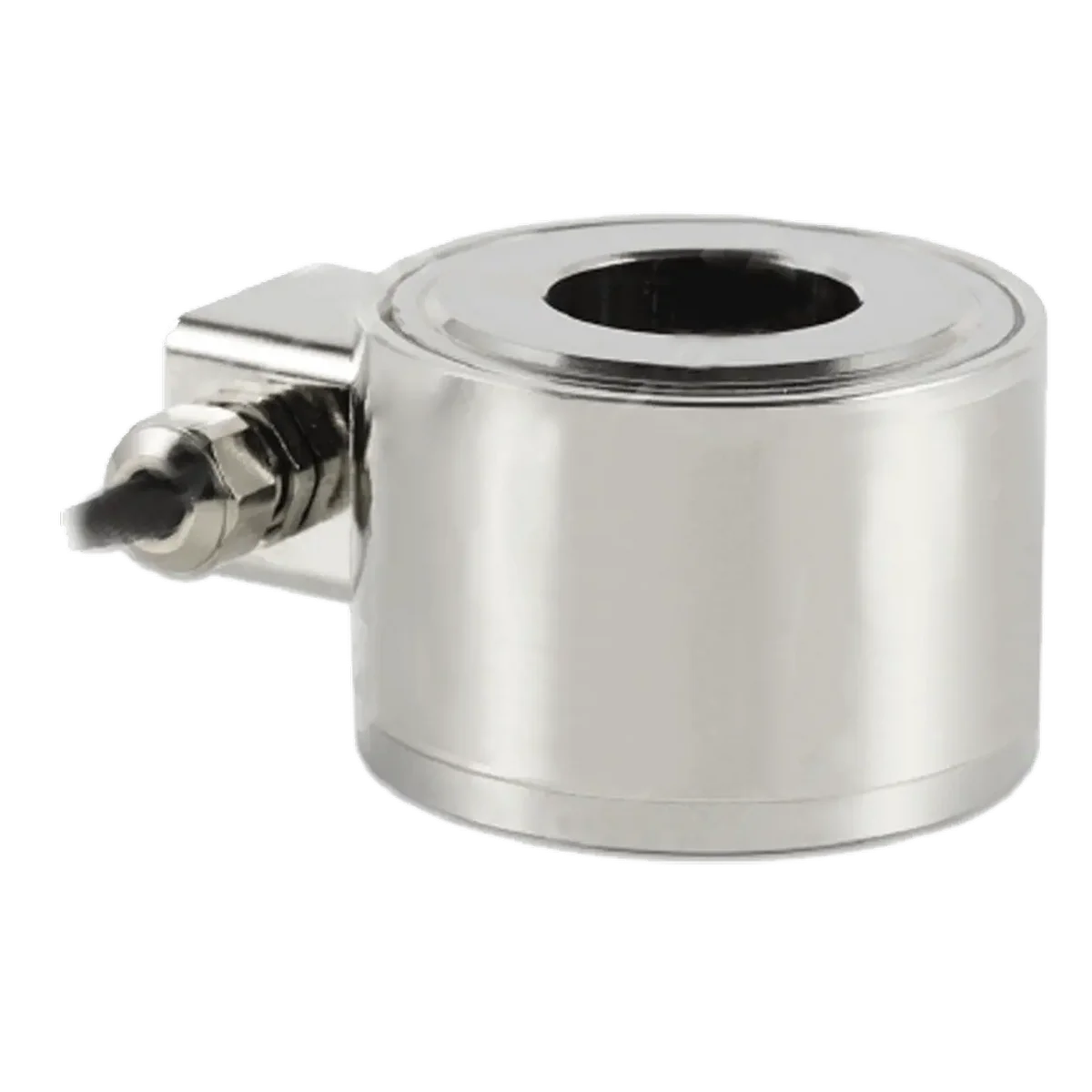

The LRBI is a robust ring load cell for compressive force measurements in higher load ranges. It is suitable for machines, test benches, press applications, and industrial plants for force monitoring.

The load cell is available in measuring ranges from 70 kN to 1,000 kN or 7,000 kg to 100,000 kg. The total error is a maximum of ±0.5% FS.

The housing is made of stainless steel 17-4PH / 1.4542 and has protection class IP67 for more demanding industrial applications. A high-temperature version up to +250 °C and ISO-17025 calibration are optionally available.
