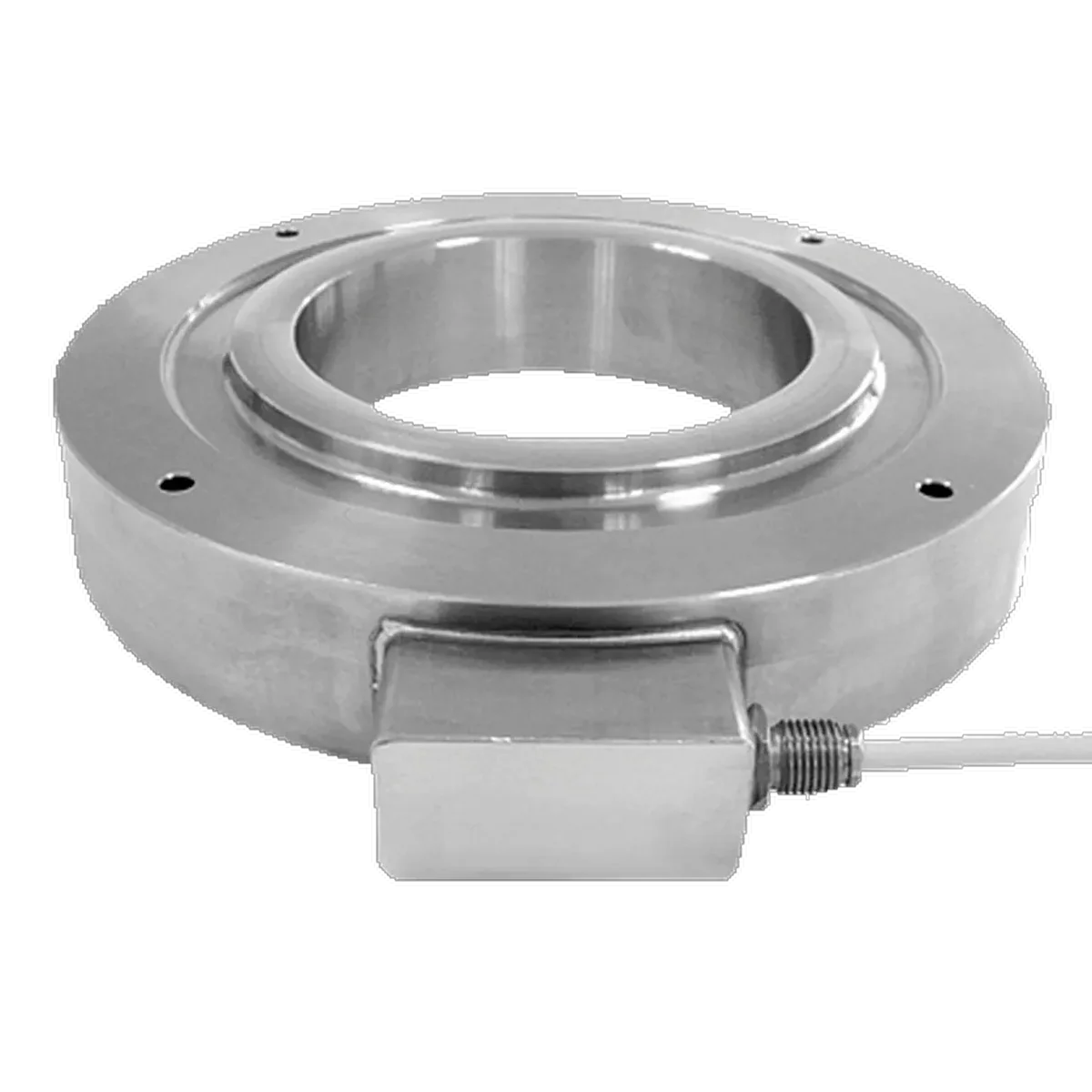

The LRLA is a robust anchor load cell for compressive force measurements in very high load ranges. It is suitable for tie rods, structural monitoring, test benches, and industrial applications with central force introduction.

The load cell is available in measuring ranges from 300 kN to 2,500 kN or 30,000 kg to 250,000 kg. The total error is a maximum of ±0.1% FS.

The housing is made of 17-4PH / 1.4542 stainless steel and is fully laser-welded. With protection class IP68, optional ISO 17025 calibration, and optional Ex certifications, the LRLA is suitable for demanding operating conditions.
