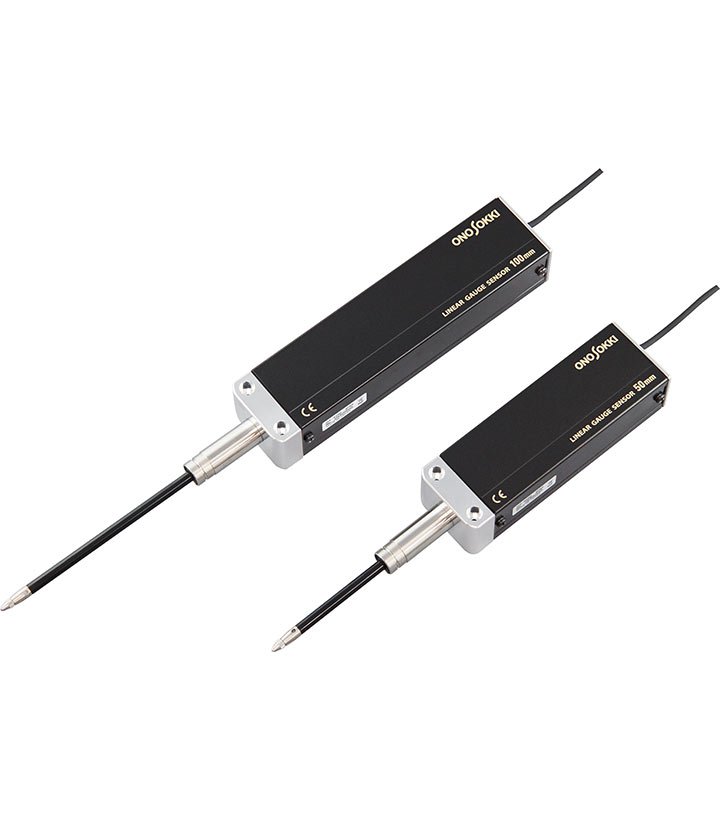

Ono Sokki GS-5100A Long Range Linear Gauge Sensor

Ono Sokki GS-5100A Long Range Linear Gauge Sensor

Replacement and upgrade for the GS-1000. The GS-5100A is a long range contact type linear gauge sensor which has a linear type displacement converter and converts spindle displacement directly into electric signals. The adoption of ball bearings in the spindle has resulted in increased torsional rigidity ( practical durability of more than 15 million cycles ).

  • Long range of 100mm / 4 inches
  • High performance, more than 15 million cycles
  • High resolution 0.00005″ / 0.001mm avaliable : Model GS-5101
  • Optional : Mounting Lug fixture (AA-8560) available
  • CE marking, RoHS compliant
Category:
Tag:
브랜드:

설명

GS-5100A

Long Range Linear Gauge Sensor

 Specifications

Range 100mm / 4.0 “
Resolution 0.01 mm / 0.0005″
Response Speed 39.4 in / s
Measuring Force 560 gf / 19.8 ozf
Operating temperature 32° to 104° F / 0° to 40° C
Stem Diameter 15 mm
Contact Point Thread M2.5
Cable length (attached) 4.9 meter
Dimensions L-13.9″ W-2.0″ TH-1.4″
Weight 1 lb. 7 oz. / 655 g
Protection Class IP 5X

 Notes

Model GS-5101 Higher Resolution 0.001mm / 0.00005″ available

Drawing gs5100_01a_e gs5000_5100e
