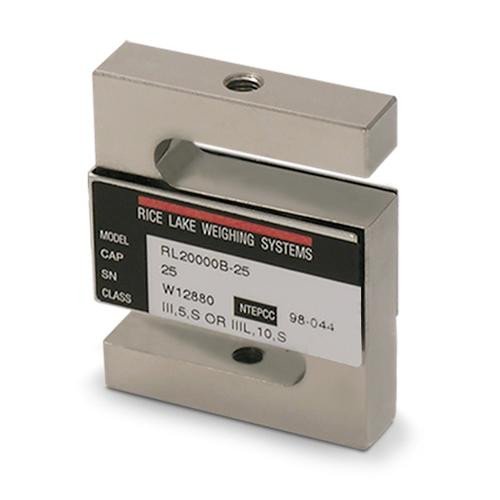

Rice Lake RL20000I-1K 1000 lb S-Beam Load Cell, NTEP
Rice Lake RL20000 S-Beam load cells are best suited for use in hanging scale applications such as hoppers or tanks. The RL20000 load cell is constructed of nickel plated alloy steel and has a 20 ft long load cell cable. They are environmentally sealed and have an IP 67 rating. RL20000 load cells can be purchased in a wide variety of capacity ratings from 25 lbs up to 20,000 lbs.
RL20000 load cells are used in the Rice Lake ITCM (Isolated Tension Cell Module) kit.
Features
- 1000 lb capacity rating
- Alloy steel construction, nickel plated
- IP 67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- 2 year limited manufacturer’s warranty
- NTEP Approved
- Safe overload up to 150% capacity
| 항목 | 내용 |
|---|---|
| Manufacturer | Rice Lake Weighing Systems |
| Model | RL20000I-1K |
| Part Number | 21438 |
| Certification | NTEP Certified 1:5000 III / 1:10,000 IIIL |
| Other Approvals | cFM, CE |
| Capacity Rating | 1000 lb / 453.6 kg |
| Safe Overload | 150% capacity |
| Rated Excitation | 5-10 VDC (maximum of 15 V) |
| Height | 2.5″ |
| Width | 2″ |
| Depth | 0.75″ |
| Hole Threading | 1/2-20 UNF-2B |
| Construction / Finish | High-alloy steel, nickel plated |
| Cable Color Code | Red = + Excitation, Black = – Excitation, Green = + Signal, White = – Signal |
| Full Scale Output | 3.0 mV/V |
| Output Resistance | 350 (±3) ohms |
| Input Resistance | 385 (±5) ohms |
| Compensated Temperature Range | 14°F to 104°F / -10°C to 40°C |
| Operating Temperature Range | -40°F to 150°F / -40°C to 65°C |
| Seal Type | IP67 Environmentally Sealed |
| Combined Error | 0.02% |
| Insulation Resistance | 5000 megohms |
| Cable Length | 20 ft |
| Cable Diameter | 0.200 polyurethane jacket |
| Interchangeable Products | Artech 20210 (1-14 UNF) |
