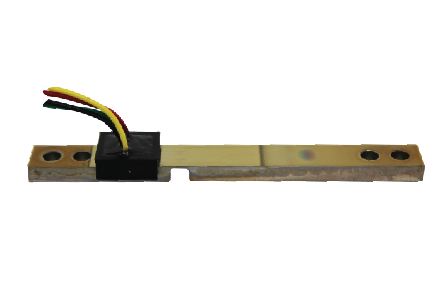

The S100 Load Cell has a proprietary sputtered thin-film strain gauge design offering long-term stability and a full Wheatstone bridge. This compact sensor, with a simple beam mounting configuration, can be used to electronically measure force or displacement in a wide variety of applications
Features: |
Applications: |
| · Compact, low profile design · High, long-term zero point stability · Low power consumption · Low hysteresis · Ideally suited for OEM |
· Medical instrumentation · Force, displacement · Acceleration measurement · Battery powered equipment · Robotics · Food dispensing equipment |
| Capacity | 0.5, 1, 2, 5, 10, 20, 50, 125 N |
|---|---|
| Hysteresis | 0.03% R.O. |
| Non-Repeatability | 0.05% R.O. |
| Natural Frequency | 80, 130, 180, 350, 500, 590, 830 Hz |
