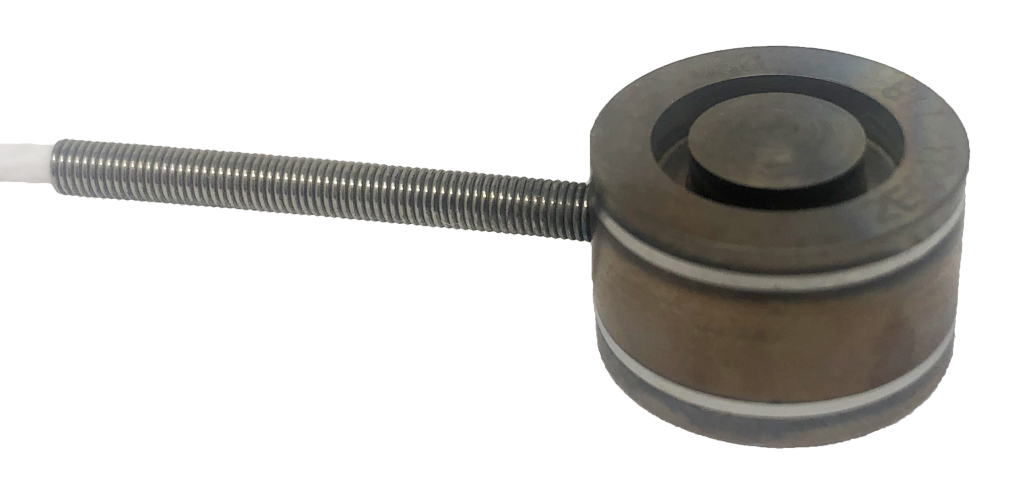

The S401 Stainless Steel Load Cell is a high-quality, stainless steel, single point sensor available in four standard ranges measuring force from 100 N to 1000 N. A 5,000Ω Wheatstone bridge and thin-film strain gauge provide ultra low power consumption and unmatched long term stability. If your range requirements are different, contact us and we will work to meet the desired parameters.
Features: |
Applications: |
| · Stainless steel · Compact, low profile design · Long-term stability · Low power consumption · Low hysteresis |
· Orthopedic instruments · Press tool · Printing · Process control · Hydraulics force control |
| Capacity | 25, 50, 100, 200, 500, 1000, 2000 N |
|---|---|
| Hysteresis | +/- 0.03% FSO |
| Non-Repeatability | +/- 0.01% FSO |
